Company Advantages1. EcoPura water filling is manufactured under strict control. We oversee production on all the graphics components that go onto a display to ensure production continuity and accuracy.
2. bottle filler 's design uses water filling concept, is liquid filling machine .
3. The product can be used in many fields and has huge market potential.
4. This product has attracted a lot of attention and will be used more by people in various fields.

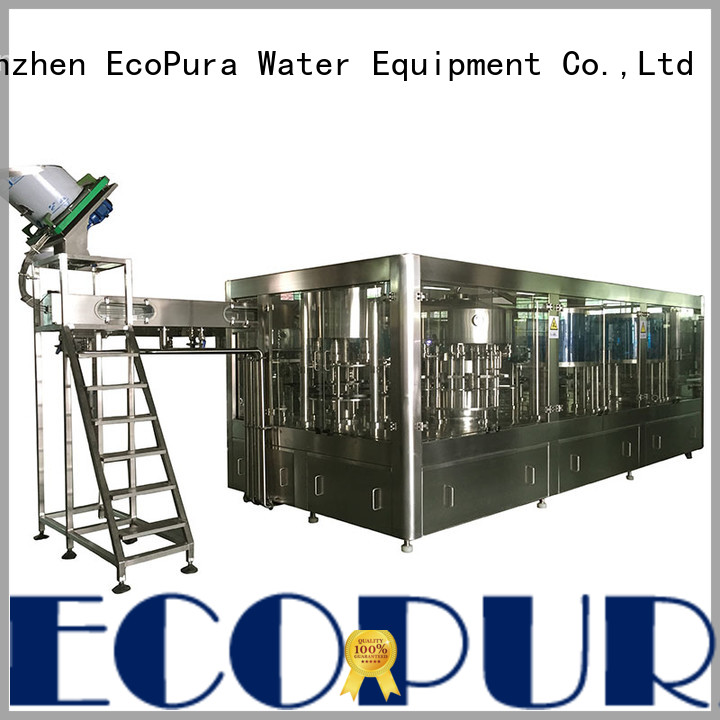

ECOPURA 4-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc
Model | Bottle Spec | Capacity Cal@500ML | Power | PLC & HMI |
HSG24-24-16-6 | 0.33L-1.5L
Height:150-330mm
Dia: 50-115mm | 5000-6000bph | 2.2kw | SIEMENS |
HSG24-24-18-8 | 7000-8000bph |
2.2kw |
HSG24-24-24-8 | 10000-12000bph |
3.0kw |
HSG32-32-32-12 | 15000-18000bph |
5.5kw |
HSG38-38-38-14 | 18000-20000bph | 7.5kw |
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us. |
Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard
High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316
hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.
Ozonated water Washing Part
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.
Filling Part
Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds. High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems. ECOPURA standard Machines are suitable for CIP
Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304. Pick station with adjustable height. Torque and spring force of the capping head are adjustable. Flushable cap retainer. Motorised height adjustment of the capper top part with bottle selection feature
Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing
Founded years ago, Shenzhen EcoPura Water Equipment Co.,Ltd is a supplier of bottle filler that focuses solely on product development and manufacturing for global markets.
2. Our advanced technology ensures the production of automatic liquid filling machine .
3. Shenzhen EcoPura Water Equipment Co.,Ltd has entered a benign development track of sustained profitability and rapid growth under the business principles of water filling . Check now! Shenzhen EcoPura Water Equipment Co.,Ltd uses liquid filling machine for the purpose of tenet. Check now! In Shenzhen EcoPura Water Equipment Co.,Ltd, satisfaction from our customers is the most important thing. Check now!
Packaging & Shipping
Package: wooden case
Shipping: by sea
Our Services
Direct after-sales service
