Product Information of unreserved service Shrink Wrap Machine wrapper for wholesale

Product Detail

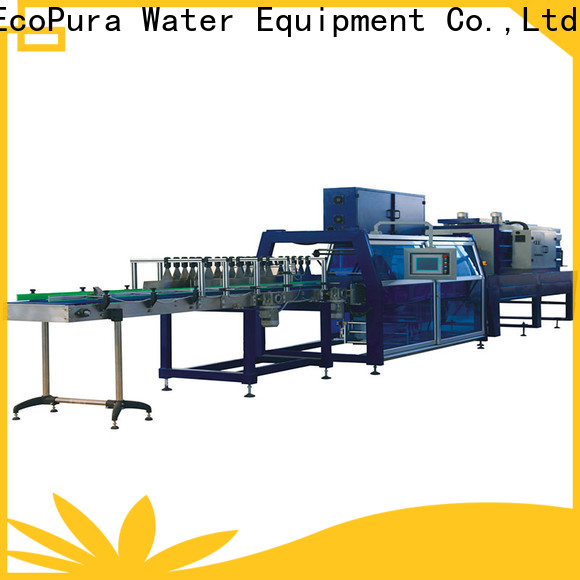

Shrinking Wrapper SWP45

The system is equipped frequency-controlled speed conveyor with bottle sorting lane, film guiding system, wrapping, shrinking tunnel, Operability thanks to a user friendly human machine interface (HMI) , 100% automated from product infeed all the way down to the tunnel outfeed is synchronized with the PLC control system.Used for Water,Juice,tea,wine, beer etc other containers post packaging.

unreserved service Shrink Wrap Machine wrapper for wholesale-1
unreserved service Shrink Wrap Machine wrapper for wholesale-2
unreserved service Shrink Wrap Machine wrapper for wholesale-3
unreserved service Shrink Wrap Machine wrapper for wholesale-4
Product Parameter

Model

SWP45

Packing Speed

40-45Pack/min

Packing Standard

2*3,3*3,3*4,4*4,4*5,4*6bottles/pack

PLC & Touch Screen

Siemens

Air Cylinder

Airtac

Sensor and relay

Omron, SMC

Assembled Size

12000*1560*2600mm

Wrapper Part Size

3200*1560*2600mm

Shrink Tunnel Size

4000*1300*1840mm

Conveyor

4800*1080*920mm (height adjustable)

Sealing & Cutting time

0.5-1s

Working Air pressure

0.6-0.8Mpa

Weight

5500kgs

Total Power

60kw

Features
  •   1. Touch screen with friendly interface convenient for man-machine communication and operation

  •   2. With automatic functions of bottles feeding and sorting, wrapping, sealing shrinking, cooling and shaping. can handle different packing combination

  •   3. The quick seal cooling function ensure the package with a higher strength even in high speed production condition.

  •   4. The inductive switch controls the film feeding system to reliably adjust and control film feeding length with less loss

  •   5. Unique centrifugal thermal air circulation system that has an equal heat distribution ensuring outstanding and durable shrinkage shape.
