unreserved service Shrink Wrap Machine wrapper for wholesale

Unreserved service Shrink Wrap Machine wrapper for wholesale

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of unreserved service Shrink Wrap Machine wrapper for wholesale
Company Advantages
1. The design of EcoPura Shrink Wrap Machine is simple yet practical. It adopts the designing concept of realizing minimized pool cleaning time with the least effort. The product is energy-saving, consuming little energy
2. The product is really economical in price and has a bright market prospect. Its overload protection function can effectively protect operators from harm
3. The product stands out for its fatigue resistance. It can withstand a given number of cycles without breaking under high stresses. The product is carefully designed with all NSF approved components
4. The product is not susceptible to high temperatures. The wood materials used are kiln dried and measured for moisture to prevent any distortion. The dimension of this product can be customized according to needs
5. The product delivers powerful brightness. Thanks to its innovative design, the new type of illuminating elements can emit stronger brightness under the same energy consumption. The product generates little noise during operation
Product Detail

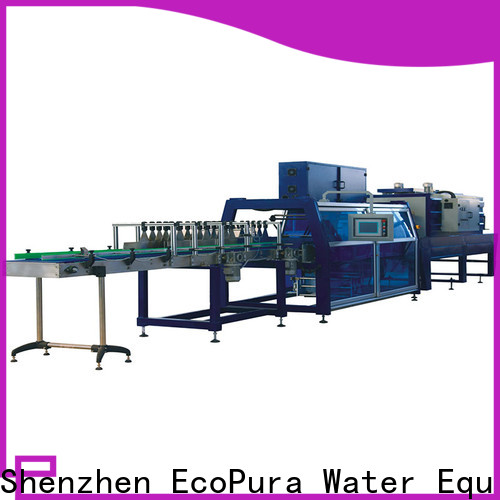

Shrinking Wrapper SWP45

The system is equipped frequency-controlled speed conveyor with bottle sorting lane, film guiding system, wrapping, shrinking tunnel, Operability thanks to a user friendly human machine interface (HMI) , 100% automated from product infeed all the way down to the tunnel outfeed is synchronized with the PLC control system.Used for Water,Juice,tea,wine, beer etc other containers post packaging.

unreserved service Shrink Wrap Machine wrapper for wholesale-1
unreserved service Shrink Wrap Machine wrapper for wholesale-2
unreserved service Shrink Wrap Machine wrapper for wholesale-3
unreserved service Shrink Wrap Machine wrapper for wholesale-4
Product Parameter

Model

SWP45

Packing Speed

40-45Pack/min

Packing Standard

2*3,3*3,3*4,4*4,4*5,4*6bottles/pack

PLC & Touch Screen

Siemens

Air Cylinder

Airtac

Sensor and relay

Omron, SMC

Assembled Size

12000*1560*2600mm

Wrapper Part Size

3200*1560*2600mm

Shrink Tunnel Size

4000*1300*1840mm

Conveyor

4800*1080*920mm (height adjustable)

Sealing & Cutting time

0.5-1s

Working Air pressure

0.6-0.8Mpa

Weight

5500kgs

Total Power

60kw

Features
  •   1. Touch screen with friendly interface convenient for man-machine communication and operation

  •   2. With automatic functions of bottles feeding and sorting, wrapping, sealing shrinking, cooling and shaping. can handle different packing combination

  •   3. The quick seal cooling function ensure the package with a higher strength even in high speed production condition.

  •   4. The inductive switch controls the film feeding system to reliably adjust and control film feeding length with less loss

  •   5. Unique centrifugal thermal air circulation system that has an equal heat distribution ensuring outstanding and durable shrinkage shape.
