standard water treatment process 15m3h solution expert for water purification

Standard water treatment process 15m3h solution expert for water purification

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Enterprise Strength
  • With the rapid development of the economy, customer service management no longer merely belongs to the core of service-oriented enterprises. It becomes the key point for all enterprises to be more competitive. In order to follow the trend of the times, EcoPura Water Treatment Equipment & Bottling Machine runs an outstanding customer service management system by learning advanced service idea and know-how. We promote customers from satisfaction to loyalty by insisting on providing quality services.
Product Comparison
EcoPura Water Treatment Equipment & Bottling Machine has great production capability and excellent technology. We also have comprehensive production and quality inspection equipment. bottle filling machine has fine workmanship, high quality, reasonable price, good appearance, and great practicality.Compared with other same kind of products, bottle filling machine produced by EcoPura Water Treatment Equipment & Bottling Machine has the following advantages and features.
  • v s
Company Advantages
1. The design of EcoPura water softener filter takes several factors into consideration. Its electric parts are developed based on the knowledge of temperature field, electromagnetic field, and flow field.
2. The product will not cause health problems like allergic reactions and skin irritation. It has undergone the high-temperature disinfection to be free of microorganism.
3. By providing high quality water treatment process , Shenzhen EcoPura Water Equipment Co.,Ltd has won much attention since its establishment.
Product Detail
Seawater Reverse Osmosis Systems SWRO

From water-makers to industrial sized Seawater Purification, we offer a full range of systems. Our units are manufactured to eliminate a large amount of salts and other minerals from seawater using RO. Our equipment does the filtration by employing a high-pressure pump to salty water forcing it through semi-porous membranes denying salts and other organics from flowing through. The membranes are only tasked to remove dissolved solids while dividing the feed water into purified water and rejected concentrated salts.  The salts and other organics are thrown into the brine stream then flushed into a drain. At the end we have purified water that has 99% less dissolved salts. These sea water RO systems have the power to purify extremely high TDS water. Seawater RO systems are usable anywhere from yachts to municipalities.

standard water treatment process 15m3h solution expert for water purification-1

standard water treatment process 15m3h solution expert for water purification-2

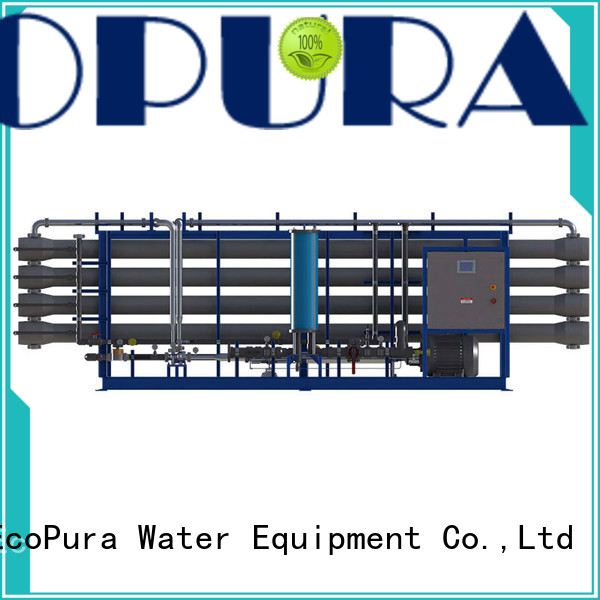

Industrial Seawater Reverse Osmosis desalination system
For continuous or heavy-duty service in marine applications on and off shore, ECOPURA manufactures a full line of designed seawater desalination systems

Seawater Reverse Osmosis

Seawater Reverse Osmosis (SWRO) is a reverse osmosis desalination membrane
process with typical single pass SWRO system consists of the following components:
Intake: well or open water
Pre-treatment: Filtration and chemical dosing
High-pressure pump: to achieve the needed pressure
Membrane assembly: to perform the desalination process
pH adjustment: to adjust the alkalinity or acid level
Disinfection: to prevent any bacterial or organic growth

standard water treatment process 15m3h solution expert for water purification-3

standard water treatment process 15m3h solution expert for water purification-4

Customizable RO System Capacity

Our Industrial SWRO Series is available with capacities ranging from 8,000 GPD to 660,000 GPD and a maximum feed water TDS of 45,000 ppm. We can provide standard SWRO Series units as well as customizable to fit you water application needs. ECOPURA Sea Water Reverse Osmosis Systems are capable of removing salts as well as other impurities such as bacteria, sugars, proteins, dyes and constituents that have a molecular weight greater than 150-250 Dalton. ECOPURA supplies a full line of standard and customizable Sea Water Reverse Osmosis systems, all of which are engineered using advanced 3D computer modeling and process design software for accurate and customized solutions.

Product Specification

Operation Specifications

Max. feed water temperature: 42°C

Equipment upgrade for TDS up to 50,000 ppm

H2S, turbidity and organics must be removed

Feed water TDS: 10,000-42,000 ppm

Operating pressure: 700 to 1,000 ps

pH tolerance range: 3-11

Feed water pressure: 40 to 80 psi

Antiscalant dosing is required

Max. Iron content: 0.05 ppm

Model

Capacity

Qty of 8040 membranes

GPD

M3/D

2

SWRO8000

8000

30

3

SWRO12000

12000

45
4

SWRO16000

16000

60
6

SWRO24000

24000

90
8

SWRO32000

32000

120
12

SWRO48000

48000

182
16

SWRO64000

64000

242
18

SWRO72000

72000

273
24

SWRO96000

96000

363
28

SWRO112000

112000

424
34

SWRO136000

136000

515
42

SWRO168000

168000

636
49

Operation Specifications

Available Options

Powder coated steel frame

Heavy duty 5 micron cartridge prefilter

Sea water resistant SS pump

Microprocessor/PLC based control panel & VFD

Glycerin-filled 316 SS prefilter pressure gauges

Product & reject flow meters

TFC spiral wound membranes

FRP membrane housings

380V/3Ph/50Hz power supply

Low & high pressure switches

Permeate TDS monitor

Stainless steel high pressure piping

Stainless steel throttling valve for reject stream

Automatic feed shut off valve

Energy recovery on 64K GPD and larger

Booster pump

380-415V/3Ph/50Hz power supply

Product tank level switch

pH controller with sensor

ORP controller with sensor

Hour meter

Cleaning skid

50 micron bag filter for open intake

Carbon prefilter

Multimedia prefilter

UV sterilizer

Custom designed units

Export crating

Chemical dosing units


The ideal applications for an Industrial Sea Water RO system include

Oil Tankers

Island-Based Businesses

Villages & Cities

Cargo Ships

Coastal Developments

Hotels & Resorts

Seaside Work Sites

Work Boats

Fish Processing Plants

Seaside Villas
