OEM ODM mineral water filling machine filler overseas trader for distribution

OEM ODM mineral water filling machine filler overseas trader for distribution

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of OEM ODM mineral water filling machine filler overseas trader for distribution
Company Advantages
1. The quality of EcoPura fill line is strictly scrutinized to meet the standards required by the China machinery industry federation in regard to the mechanical seals. The product is widely used for commercial applications
2. The product only requires little time to clean because it has a self-cleaning capacity. People only need to clean it for a certain time. The product has a reliable electrical system, without any short circuit, or electric leakage occurring
3. This product has functional safety. Possible failures or faults which could lead to a hazard are analyzed in detail in the manufacture, hence they are eliminated or reduced in use. It can be configured in a straight line or in an L-shaped configuration
4. This product has great strength. The materials used for has the strength to resist externally applied loads without breaking or yielding. The product is hygiene with no bacteria or mold built up
5. The product is corrosion resistant. Its metal parts have been treated with surface paint to guard against oxidization and rust. The product is carefully designed with all NSF approved components
Product Detail

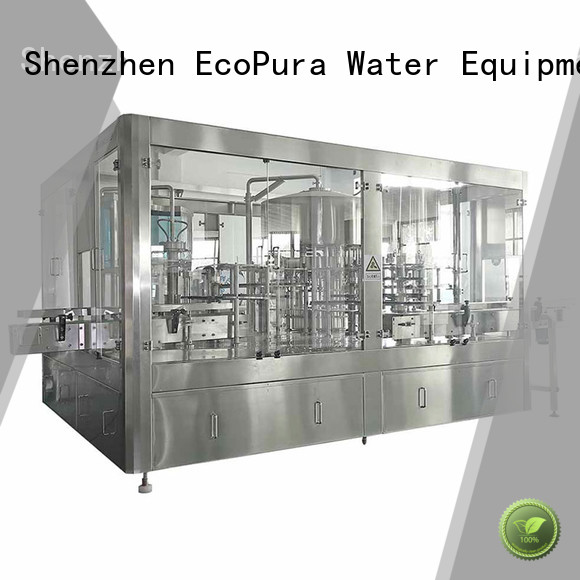

ECOPURA 3-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc


OEM ODM mineral water filling machine filler overseas trader for distribution-1

Product Parameter

Model

Bottle Spec

Capacity Cal@5L

Power

PLC & HMI

HSG10-10-5

3L-10L

1200-1500bph

2.2kw

SIEMENS

HSG12-12-5

1500-2000bph

3.0kw

HSG14-14-5

2000-2500bph

4.0kw

HSG16-16-5

2500-3000bph

5.5kw

EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

OEM ODM mineral water filling machine filler overseas trader for distribution-2

High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components
Washing Part
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

OEM ODM mineral water filling machine filler overseas trader for distribution-3

OEM ODM mineral water filling machine filler overseas trader for distribution-4

Filling Part
Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.
Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge.
Microbiological safety -Contact-free filling and optimized machine design
High filling accuracy -Use of flow meters and infinitely variable flow speeds
High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems
ECOPURA standard Machines are suitable for CIP
Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutchends the capping process. All main parts made of stainless steel AISI304 . Pick station with adjustable height Torque and spring force of the capping head are adjustable . Flushable cap retainer . Motorised height adjustment of the capper top part with bottle selection feature

OEM ODM mineral water filling machine filler overseas trader for distribution-5

OEM ODM mineral water filling machine filler overseas trader for distribution-6

Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Dealing with mineral water filling machine, Shenzhen EcoPura Water Equipment Co.,Ltd plays a preeminent role in this industry.
2. With the globalization of supply chains, we are working with overseas partners. We have established corporate relationships with many customers, which enables us to grow steadily.
3. We attach great importance to the quality and service of liquid filler .
