OEM ODM liquid filler 4in1 overseas trader for factory

OEM ODM liquid filler 4in1 overseas trader for factory

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of OEM ODM liquid filler 4in1 overseas trader for factory
Company Advantages
1. EcoPura fill line is computer-aided designed (CAD). Workers who are responsible for CAD are abundant in creating and designing inflatable items experience. The product is energy-saving, consuming little energy
2. Our company provides different types of liquid filler for your selection. Adopting an intelligent circuit design, the product has a self-check function
3. The product is characterized by a good hydrophobic property. It is non-porous and it can dry quickly without leaving water stains. The product features excellent purification technology
Product Detail

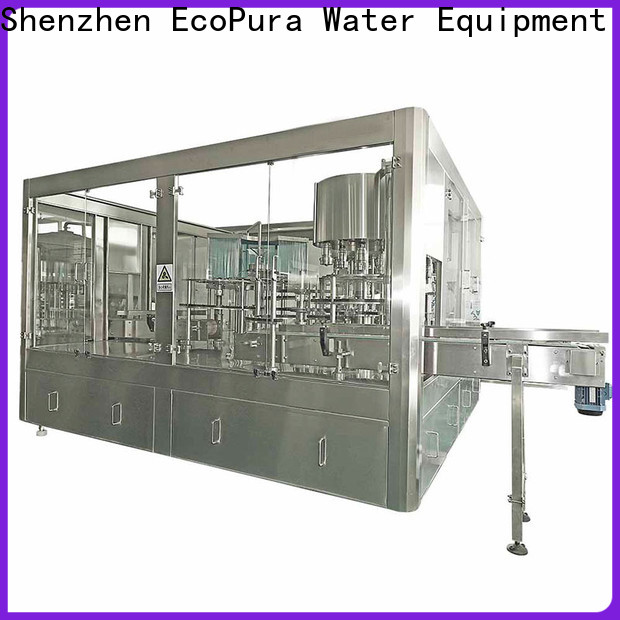

ECOPURA 4-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc


OEM ODM liquid filler 4in1 overseas trader for factory-1

Product Parameter

Model

Bottle Spec

Capacity Cal@5L

Power

PLC & HMI

HSG10-10-5

3L-10L

1200-1500bph

2.2kw

SIEMENS

HSG12-12-5

1500-2000bph

3.0kw

HSG14-14-5

2000-2500bph

4.0kw

HSG16-16-5

2500-3000bph

5.5kw

EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

OEM ODM liquid filler 4in1 overseas trader for factory-2

High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components
Chemical Washing Part
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

OEM ODM liquid filler 4in1 overseas trader for factory-3

OEM ODM liquid filler 4in1 overseas trader for factory-4

Ozonated Water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part
Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems ECOPURA standard Machines are suitable for CIP

OEM ODM liquid filler 4in1 overseas trader for factory-5

OEM ODM liquid filler 4in1 overseas trader for factory-6

Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature
Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

OEM ODM liquid filler 4in1 overseas trader for factory-7


Company Features
1. EcoPura has become one of the most popular manufacturers in the liquid filler industry.
2. Shenzhen EcoPura Water Equipment Co.,Ltd has advanced and sophisticated equipment coupled with superb technology to ensure good quality.
3. EcoPura has made up the mind to acquire the water bottle filling machine marketplace. Inquire online!
