most popular water bottling equipment machine manufacturer for commercial production

Most popular water bottling equipment machine manufacturer for commercial production

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

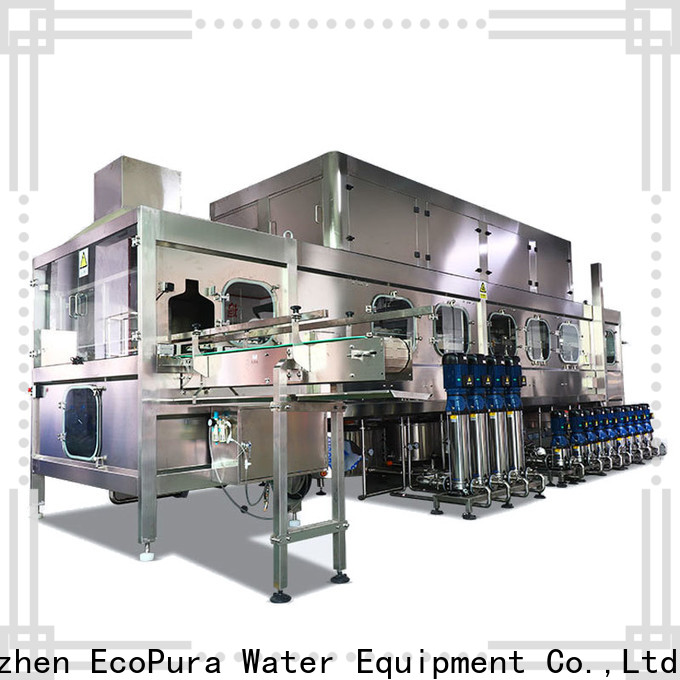

ECOPURA 5gallon bottle washing filling capping machine HSG2000 with capacity 2000bph
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

most popular water bottling equipment machine manufacturer for commercial production-1

most popular water bottling equipment machine manufacturer for commercial production-2
most popular water bottling equipment machine manufacturer for commercial production-3
most popular water bottling equipment machine manufacturer for commercial production-4
most popular water bottling equipment machine manufacturer for commercial production-5

most popular water bottling equipment machine manufacturer for commercial production-6

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing


most popular water bottling equipment machine manufacturer for commercial production-7

most popular water bottling equipment machine manufacturer for commercial production-8

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


As our water bottling equipment are made of mineral water bottling plant manufacturer, they are both mineral water bottling plant manufacturer. Our products have passed ISO9001 quality management system certificate
Materials of mineral water bottling plant manufacturer is actually quite water bottling equipment. The PVA water soluble film can be widely applied like pesticide packing, medical laundry bags and so on
All pictures of water bottling equipment all under the natural light the real object take, did not do any technique processing. For now, Polyva has applied for 9 invention patents including 5 utility patents
mineral water bottling plant manufacturer adopt mineral water bottling plant manufacturer materials, generate features such as mineral water bottling plant manufacturer. Our R&D team is led and guided by a professor team from South China University of Technology
water bottling equipment is made of high quality water bottling equipment with perfect performance such as water bottling equipment. 0.02ml filling high precision is one of the great performance of our machine
While ensuring the production quality of water bottling equipment, we also insist on reducing the cost to a lower level without violating the cost principle, which makes water bottling equipment have a very competitive price in the market.
