most popular water bottling equipment bottling manufacturer for industrial production

Latest products

Shrinking Wrapping SWP200

Auto Carton Packing Machine

Conveyor Machine

3L-6L bottle blow molding machine

Product Information
Feedback

Company Advantages
1. Every EcoPura water bottling equipment is a product of thinking and craft refined through generations. The product is widely used for water production
2. This product is able to help the worker in performing his or her duties in a better way than by hands. The product features excellent torque accuracy
3. The product features user-friendliness. It has the desired functions that are developed based on the actual needs to support different kinds of operations. The product has a reliable electrical system, without any short circuit, or electric leakage occurring
4. The product has good chemical properties. It has been pre-treated to stand up the corrosive condition, such as chemical liquid environment. The product has the advantage of low failure rate

Product Detail

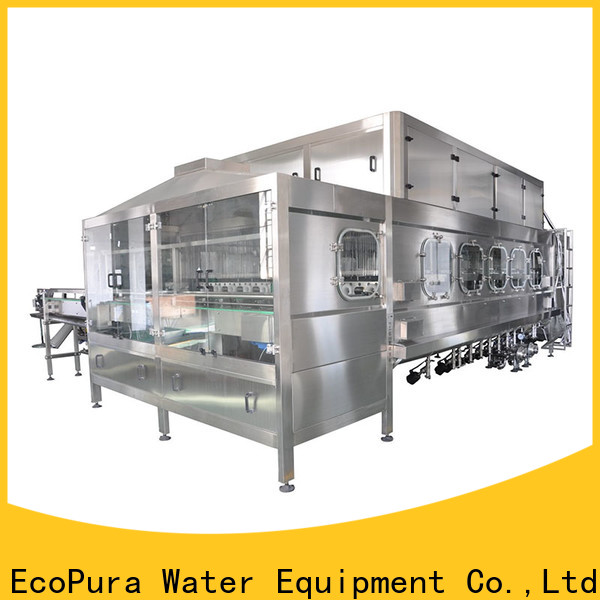

ECOPURA 5gallon bottle washing filling capping machine HSG1200 with capacity 1200bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

most popular water bottling equipment bottling manufacturer for industrial production-1

most popular water bottling equipment bottling manufacturer for industrial production-2

most popular water bottling equipment bottling manufacturer for industrial production-3

most popular water bottling equipment bottling manufacturer for industrial production-4

most popular water bottling equipment bottling manufacturer for industrial production-5

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

most popular water bottling equipment bottling manufacturer for industrial production-6

most popular water bottling equipment bottling manufacturer for industrial production-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

Company Features
1. Our finest water bottling equipment lay a solid foundation for the development of EcoPura in this market.
2. We strive to improve the supply chain performance of our customers by filling their high demand for quality manufacturing solutions. Ask!

f******l

mineral water filter machine price The design is scientific and reasonable, the structure is tight and compact, the texture is solid and thick, the use is completely reliable, durable, and the service life is long. It is your quality choice.

z******u

water bottling equipment Exquisite material selection, fine workmanship, good matching, easy installation, perfect adaptation to various electrical equipment, durable, and reliable quality.

f******s

mineral water filter machine price Exquisite in design, excellent in workmanship, stable in quality and reliable in quality, it is a truly high-quality and low-cost wiring accessory product, which supplies a steady stream of power to various electrical equipment.

p******c

water bottling equipment Well-selected materials, reasonable design, reliable performance, stable quality, safe use, easy installation, is your quality choice.

t******h

water bottling equipment The design is scientific and reasonable, with high precision and joint degree, which can perfectly fit with various electrical equipment. It is safe and reliable to use, so you can buy it with confidence.

r******t

The product not only has passed the domestic quality standards but also has been approved by many international certificates. The thermal printing method adopted in this product helps reduce printing cost because it needs no ink
