most popular mineral water bottle filling machine water factory for industrial production

Most popular mineral water bottle filling machine water factory for industrial production

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

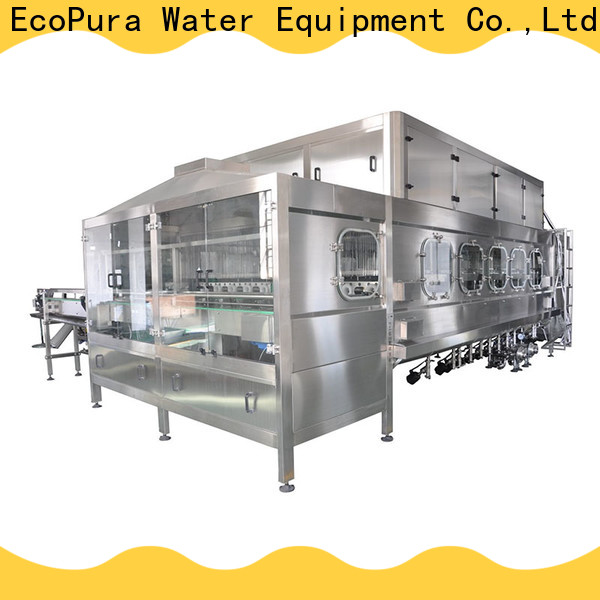

ECOPURA 5gallon bottle washing filling capping machine HSG1200 with capacity 1200bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

most popular mineral water bottle filling machine water factory for industrial production-1

most popular mineral water bottle filling machine water factory for industrial production-2
most popular mineral water bottle filling machine water factory for industrial production-3
most popular mineral water bottle filling machine water factory for industrial production-4

most popular mineral water bottle filling machine water factory for industrial production-5

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

most popular mineral water bottle filling machine water factory for industrial production-6

most popular mineral water bottle filling machine water factory for industrial production-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


EcoPura mineral water bottle filling machine is manufactured complying with international electrical safety standards. For example, it meets the safety requirements of IEC International Standards. The product is not prone to deformation after frequent uses
Different testing for EcoPura mineral water bottle filling machine will be carried out to check its electric performance. It has passed the CCC, CQC, and TELEC testing for approved low voltage detector (LVD), electromagnetic compatibility (EMC), and radiofrequency (RF).
The design of EcoPura mineral water bottling plant involves many considerations. They include the fabrication process, assembly precisions, the need for post-processing, and the overall aesthetics. The product can resist corrosion even in the presence of oxidizing acids
EcoPura mineral water bottle filling machine is manufactured according to strict quality standards and comply with international safety regulations. Every element of this product is made using only the best materials. The product has compatibility with living tissue
EcoPura mineral water bottling plant is fabricated using common mechanical processing methods, including benching, lathe machining, drilling, chipping, CNC machining, hone machining, and so on. It will not cause any infection and microbial contamination
The product can handle well under high temperatures. It exhibits high retention of properties and low volume swell when subjected to high temperatures. The product has compatibility with living tissue
