most popular mineral water bottle filling machine machine manufacturer for distribution

Most popular mineral water bottle filling machine machine manufacturer for distribution

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

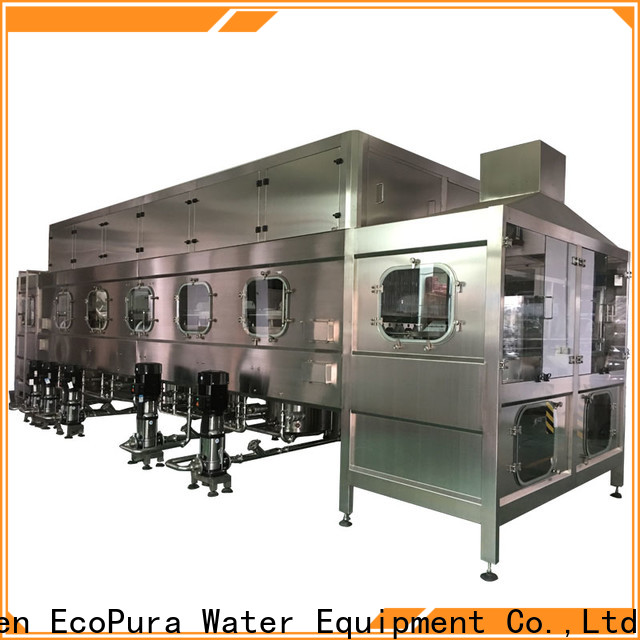

ECOPURA 5gallon bottle washing filling capping machine HSG1500 with capacity 1500bph
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

most popular mineral water bottle filling machine machine manufacturer for distribution-1

most popular mineral water bottle filling machine machine manufacturer for distribution-2
most popular mineral water bottle filling machine machine manufacturer for distribution-3
most popular mineral water bottle filling machine machine manufacturer for distribution-4

most popular mineral water bottle filling machine machine manufacturer for distribution-5

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing


most popular mineral water bottle filling machine machine manufacturer for distribution-6

most popular mineral water bottle filling machine machine manufacturer for distribution-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


There are many factors being considered during EcoPura water refilling machine design. They include the selection of material, form and size of the parts, frictional resistance and lubrication, and safety of the operator. The dimension of this product can be customized according to needs
The design of EcoPura mineral water bottle filling machine involves many aspects. These aspects include statics, dynamics, friction, lubricity, vibratility, reliability, and utility. The product is energy-saving, consuming little energy
The quality of EcoPura mineral water bottle filling machine has been tested. It is verified in terms of its design, construction, installation, commissioning, operation, adjustment, maintenance and cleaning. The product can ensure a high filtration rate
The design of EcoPura mineral water bottle filling machine requires the following knowledge of basic and engineering sciences. They include physics, mathematics, engineering mechanics, the strength of materials, the theory of machines, and thermodynamics. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
EcoPura mineral water bottle filling machine has been seriously tested in its manufacture. The tests include mechanical properties test, leak detection, and other non-destructive tests. Its parts are all made of CNC machines, which features high accuracy
The product features an easy operation. It has a simple operation instruction which can support its powerful processing flow to finish its expected tasks. The product is equipped with air conveyor and frequency control
