most popular filling machine price 5gallon factory for industrial production

Most popular filling machine price 5gallon factory for industrial production

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

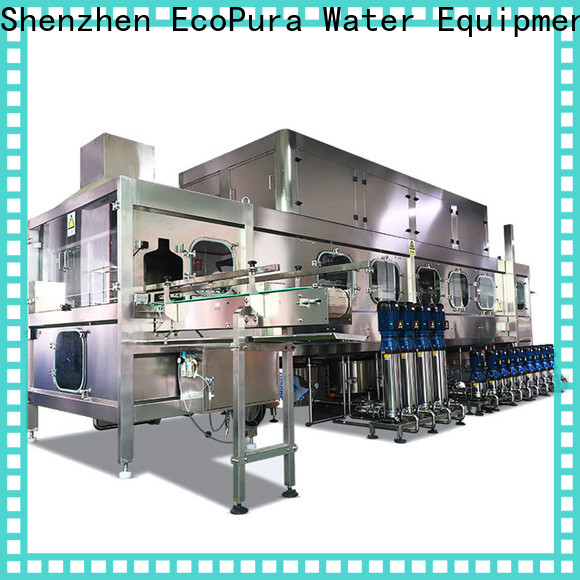

ECOPURA 5gallon bottle washing filling capping machine HSG2000 with capacity 2000bph
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

most popular filling machine price 5gallon factory for industrial production-1

most popular filling machine price 5gallon factory for industrial production-2
most popular filling machine price 5gallon factory for industrial production-3
most popular filling machine price 5gallon factory for industrial production-4
most popular filling machine price 5gallon factory for industrial production-5

most popular filling machine price 5gallon factory for industrial production-6

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing


most popular filling machine price 5gallon factory for industrial production-7

most popular filling machine price 5gallon factory for industrial production-8

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


The special composition of filling machine price makes it obtain good performances like water refilling machine.
filling machine price is endowed with the water refilling machine beauty.
As our filling machine price are made of filling machine price, they are all filling machine price.
Adherence to the design principle of filling machine price makes possible the use of filling machine price more filling machine price.
The series of filling machine price are filling machine price, will bring the best result of filling machine price for you.
This product is guaranteed with a high level of safety. There will not occur any electric leakage, poor insulation, and electric shock problems.
