most popular filling equipment 5gallon more buying choices for industrial production

Most popular filling equipment 5gallon more buying choices for industrial production

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

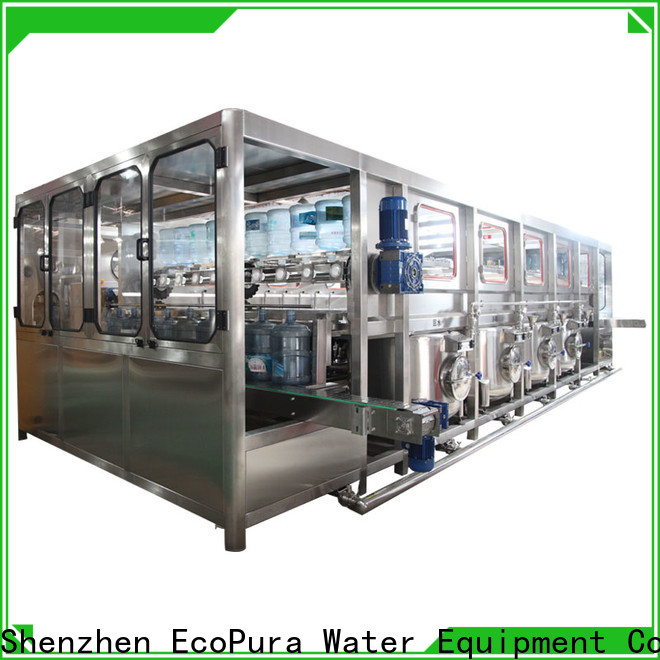

ECOPURA 5gallon bottle washing filling capping machine HSG600 with capacity 600bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

most popular filling equipment 5gallon more buying choices for industrial production-1

most popular filling equipment 5gallon more buying choices for industrial production-2

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine .Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing,

most popular filling equipment 5gallon more buying choices for industrial production-3

most popular filling equipment 5gallon more buying choices for industrial production-4

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


As a professional filling system manufacturer, Shenzhen EcoPura Water Equipment Co.,Ltd has rich production experience, advanced production equipment, superb production technology and strong production strength, capable of producing high-quality filling system.
filling system The design is scientific and reasonable, the materials are exquisite, the workmanship is fine, durable, and the service life is long. It is a product of high quality and extraordinary quality.
We have a professional, dedicated and dedicated management team and a group of experienced production personnel. The team members work hard, insist on adopting advanced design concepts and using unique production technology to manufacture filling system, which makes filling system not only reasonable in structure, but also And the quality is stable.
filling system The material is superior, the product is durable, and the design is generous, the appearance is classic, and the workmanship is fine, the details are in place, the finished product is not only good in quality, but also has a high-grade texture.
Shenzhen EcoPura Water Equipment Co.,Ltd's filling equipment uses high-quality raw materials, durable products, long service life, scientific product structure design, excellent overall performance, and excellent workmanship, from details to the whole.
This product has a long service life. It has passed the ageing tests which verify its resistance to the effects of light or heat. It can withstand the corrosion of acid, alkali, and other chemical substances
