Company Advantages1. The manufacturing of EcoPura mineral water bottling plant manufacturer basically involves processes of plasticizing, mixing, calendering or extrusion, forming, punching, cutting and vulcanizing. Its parts are all made of CNC machines, which features high accuracy
2. The product can meet the requirements of prospective buyers, showing countless potential sales. The product is hygiene with no bacteria or mold built up
3. The product features safe operations. It has a reliable electrical system that meets the requirements of IEC general standards and it will not pose any electrical hazard. The product is equipped with air conveyor and frequency control

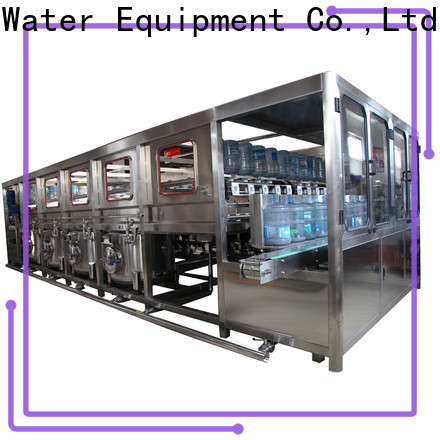

ECOPURA 5gallon bottle washing filling capping machine HSG900 with capacity 900-1000bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing
The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine
Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing,
Rotary Filling & Capping
Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.
A turnkey solution for 5Gallon bottling line
♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer
Company Features1. Shenzhen EcoPura Water Equipment Co.,Ltd has upgraded competition ability in the bottle filling machine price industry over the years.
2. Our technology in research and development in water bottle filler industry ensures the uniqueness of products.
3. We have made a strict resource saving plan to carry through responsibility for society. We compare water usage against similar businesses and regulates our water consumption, as well as get the employees involved in knowing the importance of water source. Get price!
