Company Advantages1. wine filling machine has different kinds of shapes. Its parts are all made of CNC machines, which features high accuracy
2. This product has good business prospects and is highly cost effective. Its overload protection function can effectively protect operators from harm
3. The product features enough safety. Its mechanical parts are well encapsulated to guarantee no parts will toss out during operation. The product is able to provide a great purifying effect
4. This product is low in energy consumption. When it is not running, it can be automatically on standby to help minimize power consumption. The product is widely used for water production
5. The product stands out for its highly stable mechanical properties. Treated under heat or cold temperatures, its mechanical components can stand up the extreme conditions. Adopting an advanced touch screen, it is easy to use

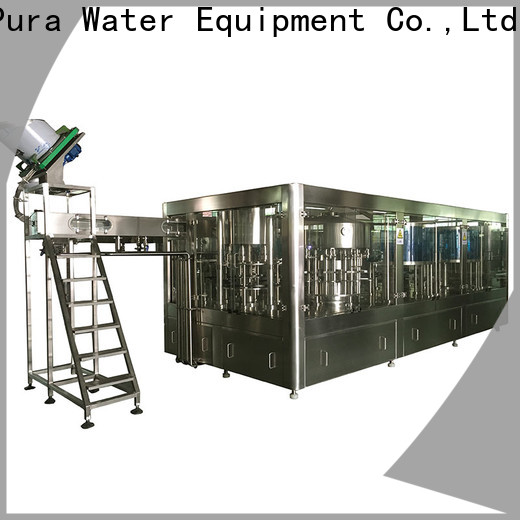

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

Model | Bottle Spec | Capacity Cal@500ML | Power | PLC & HMI |
HSG8-8-3G | 0.33L-1.5L Height:150-330mm Dia: 50-115mm | 5000-3000bph | 1.5kw | SIEMENS |
HSG16-12-6G | 3000-4500bph |
1.8kw |
HSG24-16-6G | 5000-6000bph |
2.2kw |
HSG24-18-8G | 7000-8000bph |
2.2kw |
HSG24-24-8G | 10000-12000bph | 3.0kw |
HSG32-32-12G | 15000-18000bph | 5.5kw |
HSG38-38-14G | 18000-20000bph | 7.5kw |
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us. |
High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316
hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.
Filling Part
Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.
The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.
Aluminum Roll-On Capping Part
After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.
Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing
Company Features1. Shenzhen EcoPura Water Equipment Co.,Ltd has always made every effort to develop premium marketed wine filling machine and satisfy every customer's requirement. In order to be at the forefront of the wine bottle filler industry, EcoPura always insists on technological innovation.
2. EcoPura has auto mic computer-controlled machines to produce wine bottling machine .
3. EcoPura introduced key technologies to produce wine bottling equipment. As an experienced company, Shenzhen EcoPura Water Equipment Co.,Ltd has its own independent ideas to develop it better. Inquire online!
