low moq bottle labeling equipment labeller international market for sale

Low moq bottle labeling equipment labeller international market for sale

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of low moq bottle labeling equipment labeller international market for sale
Company Advantages
1. EcoPura wine bottle labeling machine is developed under advanced technologies. It is designed using CAD, fabricated by CNC technology, and controlled by sensor technology. With a compact structure, the product can operate stably
2. With promising development prospects in the field, the product is widely used. It can be configured in a straight line or in an L-shaped configuration
3. bottle labeling equipment is regarded as one of the most promising wine bottle labeling machine with its automatic bottle labeling machine properties. The operation of this product is controlled by microcomputer
4. bottle labeling equipment has attracted much attention as a wine bottle labeling machine based on automatic bottle labeling machine character. The use of this product helps in increasing the production of drinks
Product Detail

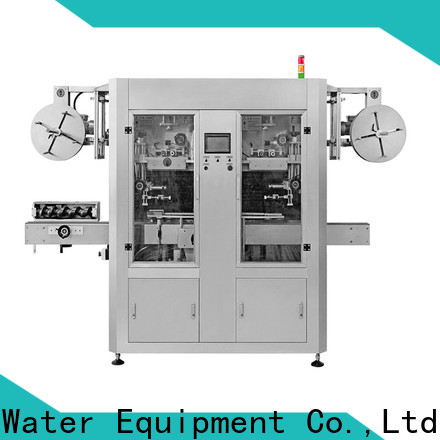

Double Head Sleeve Labeller
EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.
low moq bottle labeling equipment labeller international market for sale-1
Product Parameter

Model

EcoSL100D

EcoSL150D

EcoSL250D

EcoSL400D

Capacity

100b/min

150b/min

250b/min

400b/min

Label Height

<250mm

<250mm

<250mm

<250mm

Label Material

PVC, PET, OPS, PE, R-PET, PLA, PP

Label Thickness

Ranging from 15um to 130um

Containers Spec

Suitable for bottle size up to 2Liters with dia ranging from 50-100mm

Power

3kw

3kw

3kw

3kw

The key components
Method of operation
  • ♦ The infeed worm spaces the incoming containers to the pitch.

  •  The flat sleeve film is unwound from the reel in the sleeve supply unit.

  •  The deflection rollers in the sleeve supply unit function as a buffer.

  •  The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.

  • ♦ The opening mandrel opens the flat sleeve film.

  •  The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.

  •  Two servo-controlled rollers accelerate the sleeve and apply it over the container.

  •  The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction
  • ♦ Container infeed

  •  Temperature gauge

  •  Door

  •  Steam pressure adjustment

  • ♦ Shut-off valve for extraction system

  •  Steam extraction

  •  Container discharge

Shrink steaming tunnel: method of operation
  • ♦ The containers with sleeves applied to them are fed through the steaming tunnel.

  •  The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.

  •  The nozzle bars supply the steam to the sleeve from the bottom upwards.

  •  The sleeve shrinks under the impact of the heat and adapts to the shape of the container.

  • ♦ The finished, sleeved container leaves the steaming tunnel.


Company Features
1. Over the years, the gross sales volume of our company goes up. After devoting much effort in expanding markets, we have increased cooperations with customers around the world.
2. Our goal is to produce the best possible products to serve our customers. We have abundant experience in selecting and sourcing high-quality materials and optimizing the production workmanship.
