Company Advantages1. Our juice filling equipment designed for foreign customers are all unique and very successful. The product is widely used for commercial applications
2. With its advanced operation system, the product reduces the need for a large number workforce and finally helps reduce labor costs. It has a robust design, supported by an aluminum plate
3. It is endowed with convenient features. Its operating features have been carefully studied. The controlling panel is located on the basis of convenient handling. The product is carefully designed with all NSF approved components
4. The product can work with high accuracy. Its distinguished self-diagnostic feature can make sure that every motion is of high accuracy. The operation of this product is controlled by microcomputer
5. The product is not likely to accumulate too much heat. Its powerful cooling system is designed to maintain the proper temperature of mechanical parts, allowing it to have good heat dissipation. The dimension of this product can be customized according to needs

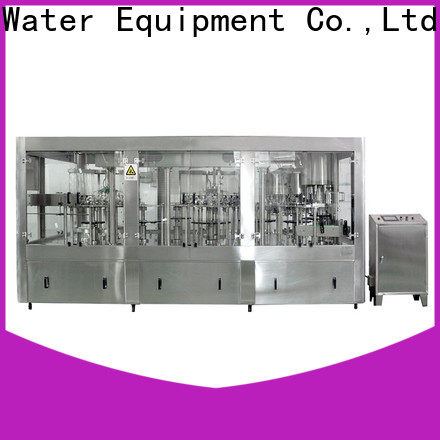

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

Model |
Bottle Spec |
Capacity Cal@500ML | Power | PLC & HMI |
DHSG16-16-12-6 | 0.33L-1.5L Height:150-330mm Dia: 50-115mm |
3000-3500bph |
1.8kw | SIEMENS |
DHSG24-24-16-6 | 4000-5000bph | 2.2kw |
DHSG24-24-18-8 | 5000-6000bph | 2.2kw |
DHSG24-24-8 | 8000-9000bph | 3.0kw |
DHSG32-32-32-12 | 10000-12000bph | 5.5kw |
DHSG38-38-38-14 | 12000-15000bph | 7.5kw |
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us. |
High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.
Filling Part
Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups
Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature
Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing
Company Features1. Shenzhen EcoPura Water Equipment Co.,Ltd has a strong technical strength and advanced production equipment.
2. Shenzhen EcoPura Water Equipment Co.,Ltd would like to achieve win-win situation with our customers. Ask online!
