ISO9001 certified Bottle Labeling Machine head overseas market for wholesale

ISO9001 certified Bottle Labeling Machine head overseas market for wholesale

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of ISO9001 certified Bottle Labeling Machine head overseas market for wholesale
Product Details
EcoPura Water Treatment Equipment & Bottling Machine pursues perfection in every detail of bottling line, so as to show quality excellence.EcoPura Water Treatment Equipment & Bottling Machine is certified by various qualifications. We have advanced production technology and great production capability. bottling line has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.
Product Comparison
water treatment equipment, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.EcoPura Water Treatment Equipment & Bottling Machine's water treatment equipment has better quality than other products in the industry, which is specifically shown in the following aspects.
Company Advantages
1. With the advantages of good material and smooth outline,Bottle Labeling Machine ocuppy the main market.
2. The product features the desired reliability. It is able to run at very high speed without any delays and work without any fatigue.
3. The product greatly increases production efficiency. It significantly helps business owners reduce resource and time needed to complete the projects.
Product Detail

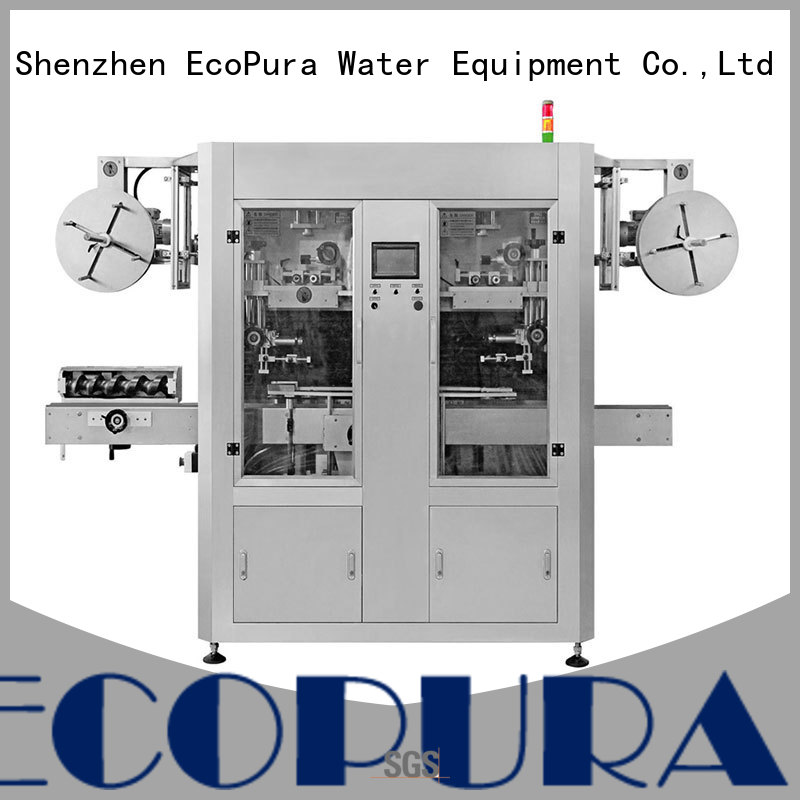

Double Head Sleeve Labeller
EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.
ISO9001 certified Bottle Labeling Machine head overseas market for wholesale-1
Product Parameter

Model

EcoSL100D

EcoSL150D

EcoSL250D

EcoSL400D

Capacity

100b/min

150b/min

250b/min

400b/min

Label Height

<250mm

<250mm

<250mm

<250mm

Label Material

PVC, PET, OPS, PE, R-PET, PLA, PP

Label Thickness

Ranging from 15um to 130um

Containers Spec

Suitable for bottle size up to 2Liters with dia ranging from 50-100mm

Power

3kw

3kw

3kw

3kw

The key components
Method of operation
  • ♦ The infeed worm spaces the incoming containers to the pitch.

  •  The flat sleeve film is unwound from the reel in the sleeve supply unit.

  •  The deflection rollers in the sleeve supply unit function as a buffer.

  •  The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.

  • ♦ The opening mandrel opens the flat sleeve film.

  •  The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.

  •  Two servo-controlled rollers accelerate the sleeve and apply it over the container.

  •  The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction
  • ♦ Container infeed

  •  Temperature gauge

  •  Door

  •  Steam pressure adjustment

  • ♦ Shut-off valve for extraction system

  •  Steam extraction

  •  Container discharge

Shrink steaming tunnel: method of operation
  • ♦ The containers with sleeves applied to them are fed through the steaming tunnel.

  •  The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.

  •  The nozzle bars supply the steam to the sleeve from the bottom upwards.

  •  The sleeve shrinks under the impact of the heat and adapts to the shape of the container.

  • ♦ The finished, sleeved container leaves the steaming tunnel.


Company Features
1. For many years, Shenzhen EcoPura Water Equipment Co.,Ltd has been a reliable supplier and manufacturer of automatic bottle labeling machine .
2. Our products entered into the relatively saturated domestic markets many years ago. Now, we are finding more new customers and establish business relationships with clients from around the globe.
3. We always stick to high quality for Bottle Labeling Machine . Get quote! Offering the most considerate service is the rule that EcoPura staff need to abide by. Get quote! Quality First, Customer Foremost' is the unswerving belief of EcoPura. Get quote! Shenzhen EcoPura Water Equipment Co.,Ltd has a steady supply for most of items. Get quote!
