ISO9001 certified bottle labeler double overseas market for commerce

ISO9001 certified bottle labeler double overseas market for commerce

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of ISO9001 certified bottle labeler double overseas market for commerce
Company Advantages
1. EcoPura wine bottle labeling machine is designed with the innovative concept that caters the market demands. It is appealing enough to attract the most eyes of the customers. The product can ensure a high filtration rate
2. The product is lightweight and has relatively good thermal conductivity, which makes it suitable for the needs of most devices. The product is hygiene with no bacteria or mold built up
3. The product features proper stability. It is achieved with cushioning, medial support and with a semi-curved or curved last: it supports foot movement. The product features excellent torque accuracy
Product Detail

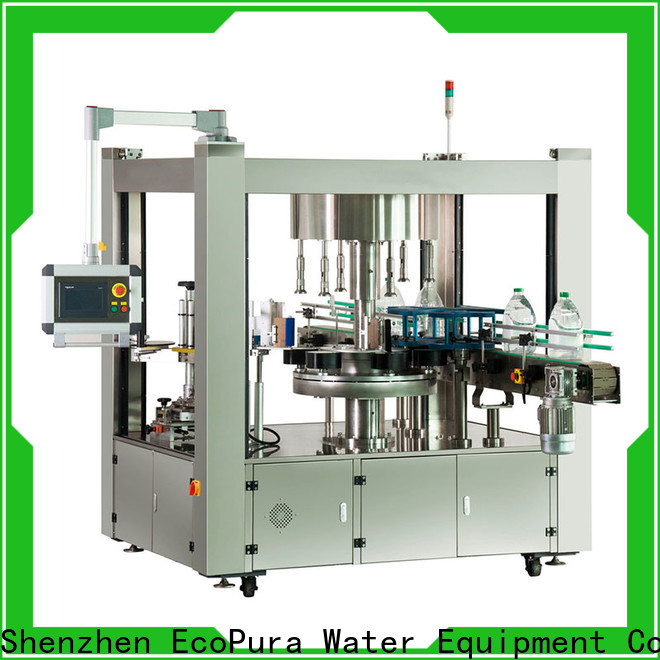

OPP Hot Melt Labeller
Labelling PET Containers,especially for Soft drinks and water, primarily uses wraparound roll-fed technology, applying either paper or plastic labels with hot glue.EcoPura Roll-fed labelling solutions deliver the Accuracy and flexibility needed to match all your needs.

ISO9001 certified bottle labeler double overseas market for commerce-1

Completely Automated

Hot Melt has continuous throughput, and it automatically controls the flow of containers entering and exiting the machine. The containers are picked up from the conveyor by a screw feeder, which sets them at the right pitch, and they are then transferred by the infeed starwheel to the bottle caroused. the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point. Two narrow strips of hotmelt glue the labels together ,after being labeled, the containers are transferred to the outfeed starwheel which places them on the outfeeds conveyor

Flexibility

Hot Melt Can apply wraparound labels to both round and irregularly shaped containers

Product Parameter

Model

HML12R9K

HML16R15K

HML20R24K

HML24R36K

Head

12

16

20

24

Capacity

9000bph

15000bph

24000bph

36000bph

HMI

SIEMENS PLC & Touch Screen

Labeling Accuracy

± 1mm

Label Size

Length 130-330mm Width 20-145mm

Label Material

OPP, Paper, Paper-Plastic Composite

Bottle Spec

Diameter :50-110mm, height 50-300mm

Heating glue temperature

120~160℃, Hot melt Glue at both ends

Air Consumption

6Kg-8L/min

Accuracy
  • ♦ The high quality of the final product is due to process accuracy

  • ♦ glue is applied very precisely with reduced glue leakage and carbonization, providing savings on glue use

  •  the gun never comes into direct contact with the container this eliminates any misalignments of the containers caused by the applicator rollers and guarantees uniform label pick up

  •  no glue circulates within the system, and so there is no need to replace contaminated or degraded glue


Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has a passionate and dynamic sales and technical support team.
2. We take full responsibility for our impact on the environment, and therefore not only do we constantly strive to reduce any such impact in the course of our operations but also consistently adhere to the legal regulations governing environmental protection. Get an offer!
