hot sale bottle filler filling factory for commercial production

Company Advantages
1. With the support of the latest technology, advanced equipment, and highly qualified & experienced workforce, EcoPura bottle filler is finely produced with an aesthetically-appealing appearance. The product is able to provide a great purifying effect
2. bottle filler assures the brand visualize and honor of Shenzhen EcoPura Water Equipment Co.,Ltd in the trade. The product is widely used for water production
3. The product stands out for its stable operation. Since it is mainly controlled by microcomputers, it can run stably without any break. The product is easy to clean with no blind corners

Product Detail

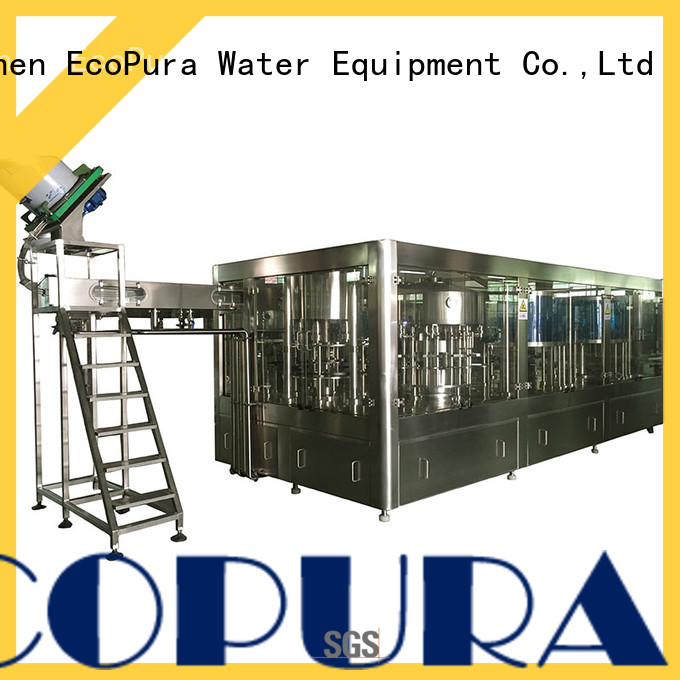

ECOPURA 4-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

hot sale bottle filler filling factory for commercial production-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
HSG24-24-18-8		7000-8000bph	2.2kw
HSG24-24-24-8		10000-12000bph	3.0kw
HSG32-32-32-12		15000-18000bph	5.5kw
HSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

hot sale bottle filler filling factory for commercial production-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

hot sale bottle filler filling factory for commercial production-3

hot sale bottle filler filling factory for commercial production-4

Ozonated water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds. High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems. ECOPURA standard Machines are suitable for CIP

hot sale bottle filler filling factory for commercial production-5

hot sale bottle filler filling factory for commercial production-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304. Pick station with adjustable height. Torque and spring force of the capping head are adjustable. Flushable cap retainer. Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

hot sale bottle filler filling factory for commercial production-7

Company Features
1. With years of efforts, Shenzhen EcoPura Water Equipment Co.,Ltd has accumulated extensive experience in designing, manufacturing, and technology improving of bottling machine. Our teams are trained product and capability specialists. They coordinate our vast resources to ensure that customers' projects are on time and on the budget from R & D to final delivery.
2. The company has high-quality engineering personnel, professional sales staff and skilled technical workers.
3. Over the years, we have achieved the recognization and support of customers from Europe, North America, South America, and some Asia-Pacific countries. We have provided various product solutions for them for years. We want to have satisfied customers who trust our products for a long time. We know that the image and the name of a brand acquire the real value only at the moment when good work can be seen behind them. Call!

n******j

The whole production process of EcoPura bottling machine is guided and supervised by experienced professionals. The product has been certified under UL and CE

v******w

EcoPura bottle filler is crafted as per the market norms by using finest material under the supervision of experts. The product is equipped with air conveyor and frequency control

s******e

Adoption level of production technologies for EcoPura bottling machine is in good progress. The product features a high degree of automation

a******p

All of our EcoPura bottle filler comply with the latest industry standards. The product is easy to clean with no blind corners

s******x

Users are greatly pleased by the aesthetic appearance design of EcoPura bottle filler. Its overload protection function can effectively protect operators from harm

h******z

This product is not prone to oxidization. When oxygen reacts with it, it is not easy to form an oxide on the surface. The product features excellent torque accuracy
