factory directly supply wine bottling machine wine manufacturer for industrial production

Product Information of factory directly supply wine bottling machine wine manufacturer for industrial production

Company Advantages
1. EcoPura wine filler will go through field site testing. It is placed where it actually be used and checked its efficiency on solar energy utilization capacity. The use of this product helps in increasing the production of drinks
2. Over the years, this product has received a good reputation from our customers. The product has a reliable electrical system, without any short circuit, or electric leakage occurring
3. The product is good for the environment. Unlike some refrigerants, the ammonia refrigerant used does no harm to the ozone layer and is not a hazard after it gets into the atmosphere. The product features a high degree of automation
4. This product features good heat resistance. Adopting new composite materials, it can be sterilized at high temperatures without deformation. The product generates little noise during operation
5. The product is quite efficient. It has a couple of components that help it get started, consuming less energy when getting the system to work. It has a robust design, supported by an aluminum plate

Product Detail

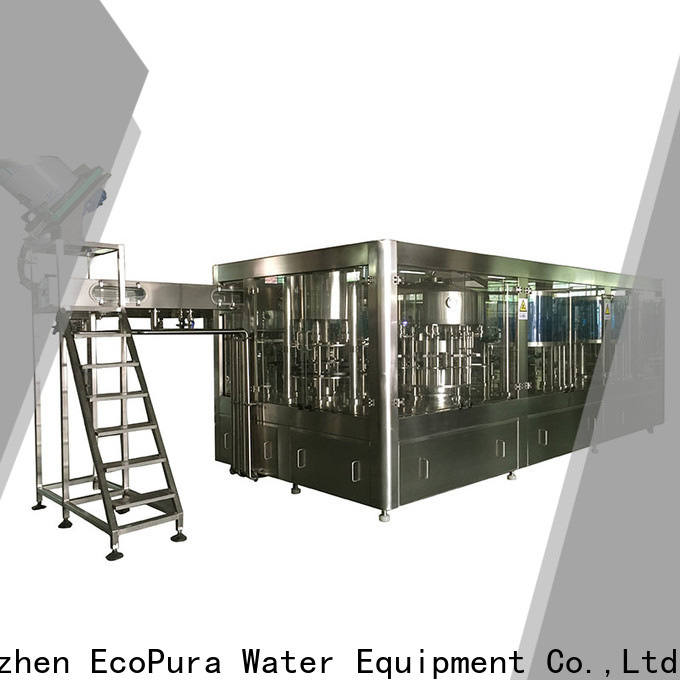

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

factory directly supply wine bottling machine wine manufacturer for industrial production-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3G	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-3000bph	1.5kw	SIEMENS
HSG16-12-6G		3000-4500bph	1.8kw
HSG24-16-6G		5000-6000bph	2.2kw
HSG24-18-8G		7000-8000bph	2.2kw
HSG24-24-8G		10000-12000bph	3.0kw
HSG32-32-12G		15000-18000bph	5.5kw
HSG38-38-14G		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

factory directly supply wine bottling machine wine manufacturer for industrial production-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

factory directly supply wine bottling machine wine manufacturer for industrial production-3

factory directly supply wine bottling machine wine manufacturer for industrial production-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.

Aluminum Roll-On Capping Part

After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.

factory directly supply wine bottling machine wine manufacturer for industrial production-5

factory directly supply wine bottling machine wine manufacturer for industrial production-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd provides its customers with an outstanding price-performance wine bottling machine . Quality speaks louder than number in Shenzhen EcoPura Water Equipment Co.,Ltd.
2. The quality for our wine filling machine is so great that you can definitely rely on.
3. We put great emphasis on technology of wine bottling equipment. Shenzhen EcoPura Water Equipment Co.,Ltd will construct localized marketing organization to take advantage of localization and better understand the needs of the local customers. Get quote!
