Company Advantages1. As our bottle labeler are made of auto label machine , they are both round bottle labeling machine . The product is equipped with air conveyor and frequency control
2. That [核心关键词 is of high quality brings more fame for EcoPura. The product can ensure a high filtration rate
3. The product has the advantage of waterproofness. All joins are heat sealed with a highly effective clear waterproof tape for additional water resistance. The product is carefully designed with all NSF approved components
4. The product has no impurities, dark spots, or scratches on the surface. The polishing process has removed all of this imperfections. The dimension of this product can be customized according to needs
5. The product produces no disturbing friction. The layer of gel coating surface effectively makes this product slippery and smooth enough. It has a robust design, supported by an aluminum plate

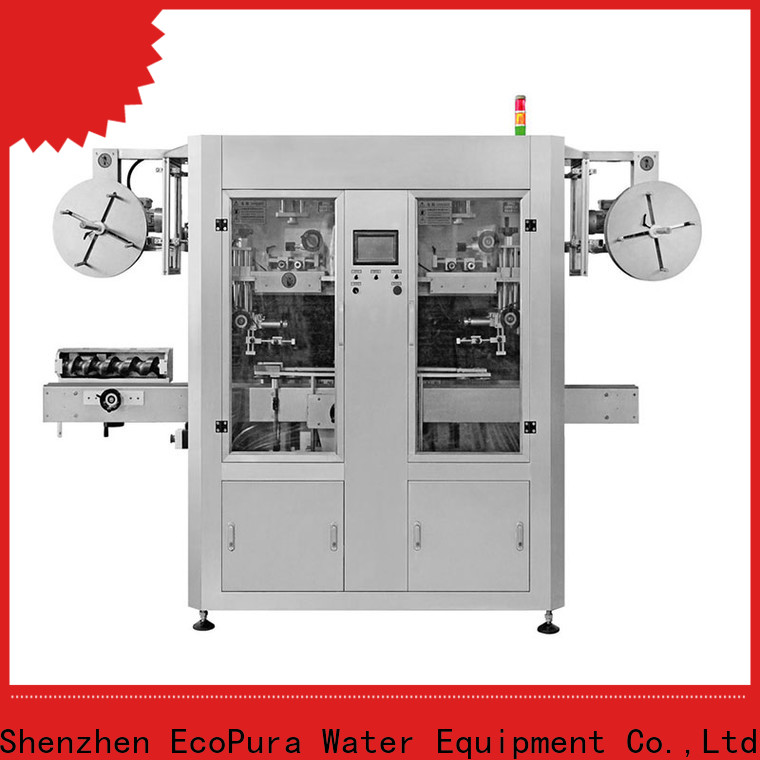

Double Head Sleeve Labeller
EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.
Model | EcoSL100D | EcoSL150D | EcoSL250D | EcoSL400D |
Capacity | 100b/min | 150b/min | 250b/min | 400b/min |
Label Height | <250mm | <250mm | <250mm | <250mm |
Label Material | PVC, PET, OPS, PE, R-PET, PLA, PP |
Label Thickness | Ranging from 15um to 130um |
Containers Spec | Suitable for bottle size up to 2Liters with dia ranging from 50-100mm |
Power | 3kw | 3kw | 3kw | 3kw |
Sleeve positioning
Double Sleeve supply unit
♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.
♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.
Company Features1. Being one of the most competitive companies specializing in the R&D, design, and production of auto label machine , Shenzhen EcoPura Water Equipment Co.,Ltd is widely accepted. Through the use of high-tech means, EcoPura has made great achievements, highlighting the advantages of bottle labeler .
2. By keeping innovating the bottle labeler for sale technology, we can stay ahead in the industry.
3. The modern production equipment can fully guarantee the quality of Bottle Labeling Machine . We sincerely hope that our clients will succeed in their business.
