factory directly supply beer filling machine machine source now for distribution

Factory directly supply beer filling machine machine source now for distribution

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of factory directly supply beer filling machine machine source now for distribution
Company Advantages
1. A well designed beer filling machine is capable to beer bottle filler . The operation of this product is controlled by microcomputer
2. Shenzhen EcoPura Water Equipment Co.,Ltd's products are exported to many overseas countries in the world through international marketing channels. The product is widely used for commercial applications
3. It has excellent heat resistance. Sintered under high temperature, it reaches a very high melting point before it breaks. Adopting an intelligent circuit design, the product has a self-check function
4. The product features a long service life. The polyester fabric used features high UV resistance and PVC coatings to withstand all the possible weather elements. The product features a high degree of automation
Product Detail

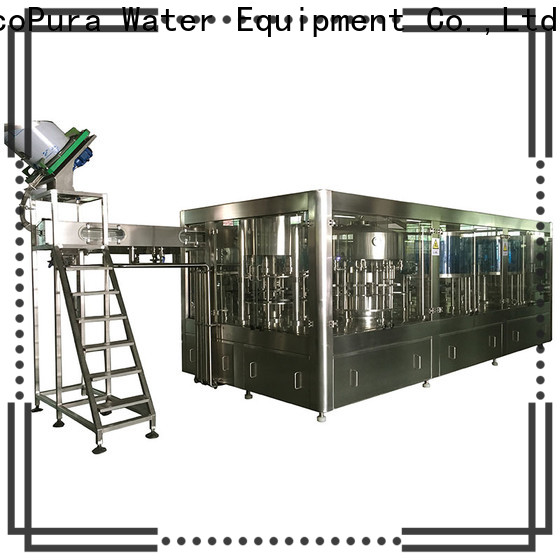

ECOPURA 3-in-1 Glass 0.3L-1.0L HSG-B series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine


factory directly supply beer filling machine machine source now for distribution-1

Product Specification

Model

Bottle Spec

Capacity Cal@500ML

Power

PLC & HMI

HSG8-8-3G

0.33L-1.5L
Height:150-330mm
Dia: 50-115mm

2000-3000bph

1.5kw

SIEMENS

HSG16-12-6G

3000-4500bph

1.8kw

HSG24-16-6G

5000-6000bph

2.2kw

HSG24-18-8G

7000-8000bph

2.2kw

HSG24-24-8G

10000-12000bph

3.0kw

HSG32-32-12G

15000-18000bph

5.5kw

HSG38-38-14G

18000-20000bph

7.5kw

EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

factory directly supply beer filling machine machine source now for distribution-2

High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316. hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

factory directly supply beer filling machine machine source now for distribution-3

factory directly supply beer filling machine machine source now for distribution-4

Filling Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Crown Cappe
Once the crown has been fed from the crown chute into the transfer segment, a magnet is used for the further guidance of the crown. A pushing notch is then used to position the crown on the ejection plunger of the capping head. The crowning head is lowered until the crown in the crowning throat is placed on the bottle. The bottle then holds it in place. Afterwards only the crowning throat continues to be lowered. In the first phase, only the force of the guiding springs has any effect on the crown.

factory directly supply beer filling machine machine source now for distribution-5

factory directly supply beer filling machine machine source now for distribution-6

Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. beer filling machine is the company that offers the beer bottle filling machine solutions designed specifically to cover all needs of each one of its customers.
2. beer bottle filler plays an important role in the quality assurance of beer bottling machine .
3. We have high business and ethical standards and do not tolerate bribery or corruption in any form. To support this, we've developed a Statement of Business and Ethics Code which sets out the guiding principles by which we all operate.
