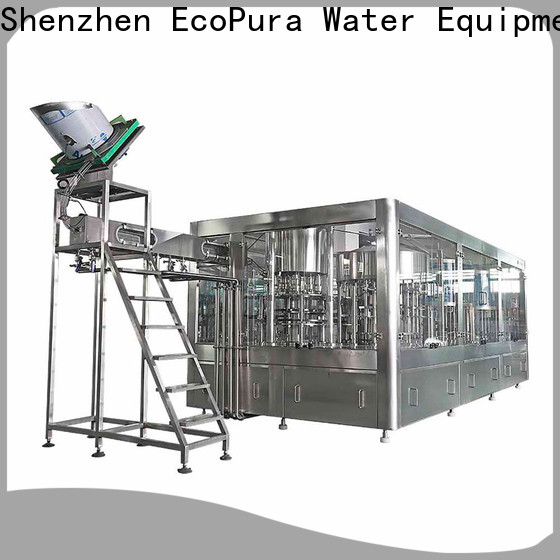

ECOPURA 3-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

EcoPura low cost small liquid filling machine trade partner for commercial production-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3	0.33L-1.5L Height:150-330mm Dia: 50-115mm	2000-3000bph	1.5kw	SIEMENS
HSG16-12-6		3000-4500bph	1.8kw
HSG24-16-6		5000-6000bph	2.2kw
HSG24-18-8		7000-8000bph	2.2kw
HSG24-24-8		10000-12000bph	3.0kw
HSG32-32-12		15000-18000bph	5.5kw
HSG38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura low cost small liquid filling machine trade partner for commercial production-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura low cost small liquid filling machine trade partner for commercial production-3

EcoPura low cost small liquid filling machine trade partner for commercial production-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems .ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch.ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura low cost small liquid filling machine trade partner for commercial production-5

EcoPura low cost small liquid filling machine trade partner for commercial production-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

n******w

EcoPura small liquid filling machine is of various attractive design styles. It can be configured in a straight line or in an L-shaped configuration

v******x

EcoPura water bottling plant is developed and manufactured using the latest technology materials. The product can ensure a high filtration rate

c******d

The offered EcoPura small liquid filling machine is designed by a team of experienced professionals. The product is carefully designed with all NSF approved components

n******x

EcoPura water bottling plant is characterized by advanced technology with the great workmanship. With a compact structure, the product can operate stably

p******t

EcoPura small liquid filling machine is designed by our experts bringing the latest concepts into the designing process. The product is energy-saving, consuming little energy

i******o

It has great strength. Appropriate material is selected individually for its component based on the analysis of stresses that work upon these components. The product is hygiene with no bacteria or mold built up
