low cost small liquid filling machine 4in1 trade partner for commercial production

Enterprise Strength

EcoPura Water Treatment Equipment & Bottling Machine strives to explore a humanized and diversified service model to provide all-round and professional services for customers.

Company Advantages
1. The appealing design of EcoPura water filling comes from a team of talented professionals.
2. The product is of high efficiency. It can start and finish a certain task in the shortest time without any fatigue.
3. For years, Shenzhen EcoPura Water Equipment Co.,Ltd has went on the small liquid filling machine market in an invincible position.

Product Detail

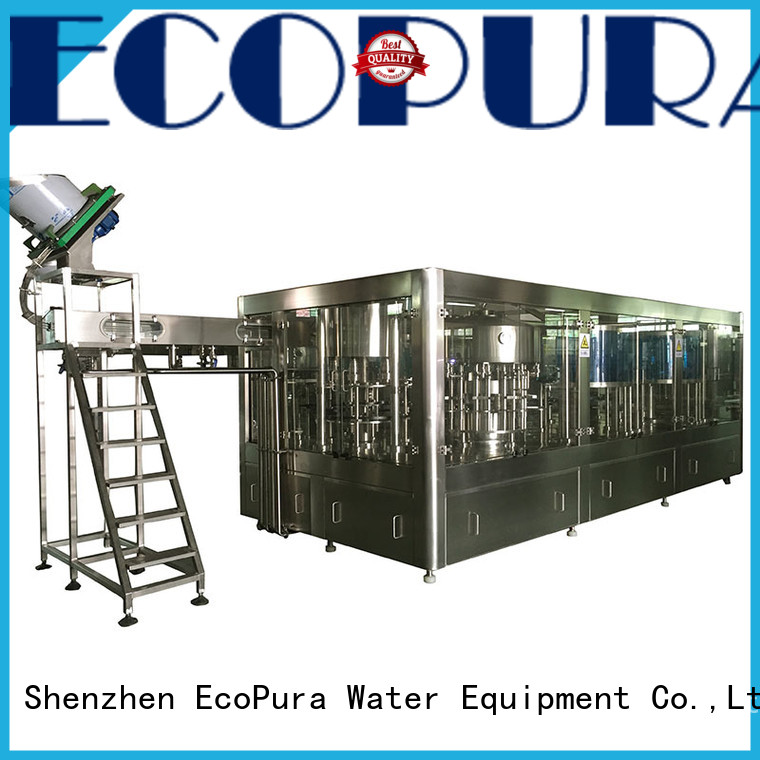

ECOPURA 4-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

EcoPura low cost small liquid filling machine trade partner for commercial production-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
HSG24-24-18-8		7000-8000bph	2.2kw
HSG24-24-24-8		10000-12000bph	3.0kw
HSG32-32-32-12		15000-18000bph	5.5kw
HSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura low cost small liquid filling machine trade partner for commercial production-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura low cost small liquid filling machine trade partner for commercial production-3

EcoPura low cost small liquid filling machine trade partner for commercial production-4

Ozonated water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds. High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems. ECOPURA standard Machines are suitable for CIP

EcoPura low cost small liquid filling machine trade partner for commercial production-5

EcoPura low cost small liquid filling machine trade partner for commercial production-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304. Pick station with adjustable height. Torque and spring force of the capping head are adjustable. Flushable cap retainer. Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura low cost small liquid filling machine trade partner for commercial production-7

Company Features
1. As a competitive manufacturer in China, Shenzhen EcoPura Water Equipment Co.,Ltd has gained a good reputation when it comes to the ability in developing and manufacturing small liquid filling machine.
2. Our factory has a number of automated or semi-automated production lines capable of handling large production yield needs. These lines are fully flexible to gear different production adjustments.
3. Complying with regulations of EcoPura can make this company develop better. Get price! EcoPura always pursues the coordinated and win-win situation with customers. Get price!

v******e

The design considerations of EcoPura water filling cover the following aspects: static and dynamic stiffness, operational speeds, gearboxes, manual, and automatic control. As a front-line component, it aims to maximize the service life of the trailer

y******n

EcoPura small liquid filling machine is manufactured under precision casting workmanship. It has to go through cutting machining, thermal treating, and surface treating by skillful technicians. It boasts excellent mechanical performance and can protect the trailer from undesired mechanical failure

w******r

The design of EcoPura small liquid filling machine follows the following basic principles: major mechanical behavior, static and dynamic structure, safety, cycle time, etc. The product, when custom made, will be delivered within 60 days

h******n

EcoPura small liquid filling machine is guaranteed with a high safety level. During the designing stage, various elements considering its safety are seriously considered, including electrical safety, mechanical security, and personal safety of operators. It introduces either alloy steel or low-carbon steel as raw materials

c******s

EcoPura water filling has gone through the following production stages. They include the approval of drawings, the fabrication of sheet metal, welding, the arrangement of wire, and dry run testing. It is suited for manufacturers of trailers, trailers rental company or logistics companies

g******o

The company actively introduces foreign advanced technology to transform and upgrade water filling, strives to improve its internal performance and external quality, and ensures that the water filling produced are all energy-efficient, safe and environmentally friendly products.
