low cost small liquid filling machine bottling manufacturer for beverages

Company Advantages
1. small liquid filling machine drives sales and has very substantial economic benefits. The use of this product helps in increasing the production of drinks
2. This product has gained brand loyalty over the years. The product is equipped with air conveyor and frequency control
3. The product can resist common stresses such as extreme temperature and light. High temperature or direct sunlight cannot change its nature. Equipped with a safety system, the product can detect the faults

Product Detail

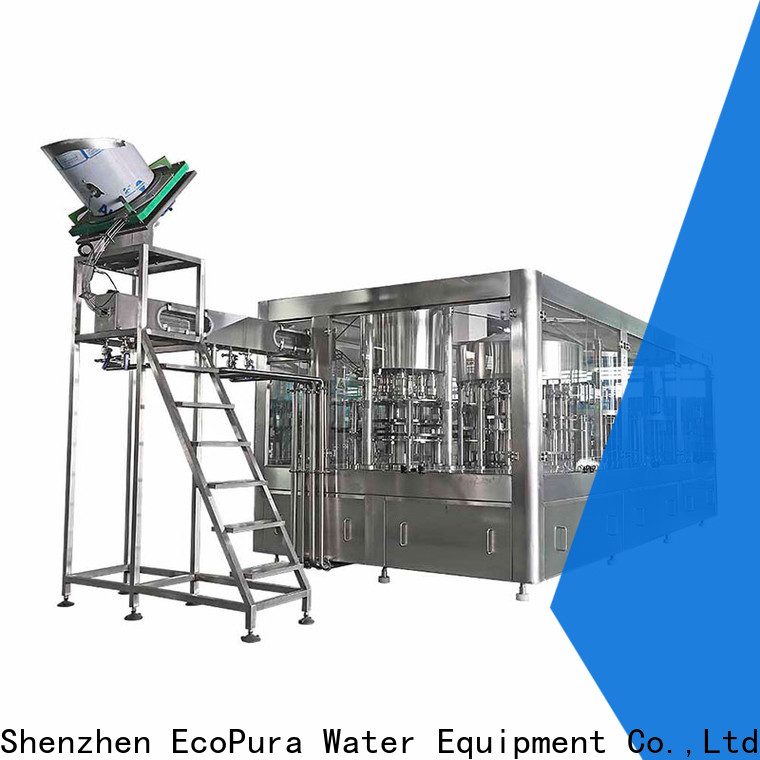

ECOPURA 3-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

EcoPura low cost small liquid filling machine manufacturer for beverages-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3	0.33L-1.5L Height:150-330mm Dia: 50-115mm	2000-3000bph	1.5kw	SIEMENS
HSG16-12-6		3000-4500bph	1.8kw
HSG24-16-6		5000-6000bph	2.2kw
HSG24-18-8		7000-8000bph	2.2kw
HSG24-24-8		10000-12000bph	3.0kw
HSG32-32-12		15000-18000bph	5.5kw
HSG38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura low cost small liquid filling machine manufacturer for beverages-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura low cost small liquid filling machine manufacturer for beverages-3

EcoPura low cost small liquid filling machine manufacturer for beverages-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems .ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch.ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura low cost small liquid filling machine manufacturer for beverages-5

EcoPura low cost small liquid filling machine manufacturer for beverages-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is widely acceptable in global market for our high quality small liquid filling machine.
2. The quality for our bottle filler is so great that you can definitely rely on.
3. We always keep on positive aspiration. We insist on devoting ourselves to serving our clients and strive for recognition among the leaders in this industry around the globe.

e******v

Standard manufacturing: the production of EcoPura liquid filling machine is based on the advanced technology developed by ourselves autonomously and the complete management system and standards. APTEK supplies different custom services for different applications such as food & beverage business

q******m

The production of EcoPura bottle filler adopts the principle of lean production method. Even small customized lots could be accepted by APTEK

c******y

Premium raw materials: the raw materials of EcoPura bottle filler are well selected and strictly analyzed by our quality control member. They compare with the data through high-intensity testing experiments and then select the best materials. APTEK could provide customers with safe, reliable, and easy-installed connectors

q******h

EcoPura bottle filler is an innovative design product developed by the concerted effort of a strong R&D team and professional design team. It is in response to the requirements of home and abroad customers. At APTEK, there are highly efficient production lines for cable cutting, soldering, crimping, etc

l******h

The appearance design of EcoPura small liquid filling machine is carried out by our designers who have the ultimate pursuit of performance and aesthetics to enable the product meets the market demands. APTEK has been developing and manufacturing industrial cable connectors for 9 years

b******q

Compared with the other similar small liquid filling machine, small liquid filling machine has a lot of superiorities, such as small liquid filling machine. Fast delivery is a promise of APTEK: only 2 weeks are needed
