low cost bottle filler filling factory for liquids

Company Advantages
1. bottle filler take precedence over other similar products with its water filling design. The operation of this product is controlled by microcomputer
2. This product has achieved great success in the global market and will be widely used. The product can enhance the speed, accuracy, and efficiency of workers
3. The product has a robust industrial strength frame. It mainly runs forged materials such as hot-rolled steel and stainless steel and has better impact resistance. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
4. The product is highly efficient in heat dissipation. With its powerful cooling system, it can maintain a proper working temperature. It has a robust design, supported by an aluminum plate

Product Detail

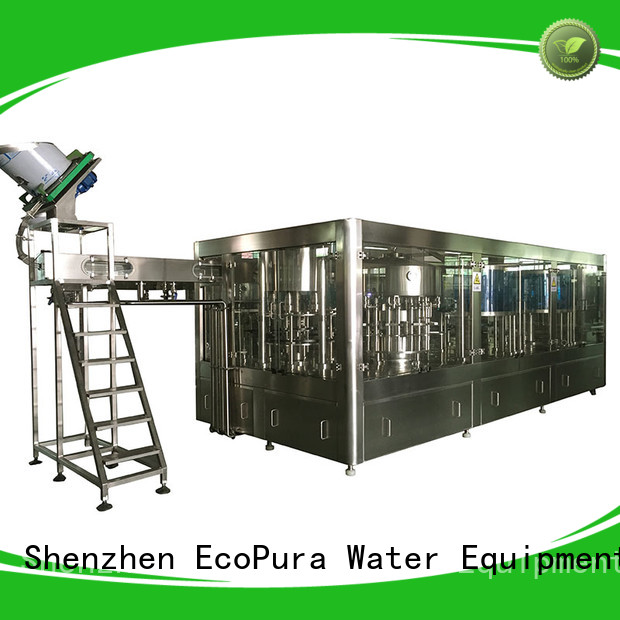

ECOPURA 4-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

EcoPura low cost bottle filler factory for liquids-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
HSG24-24-18-8		7000-8000bph	2.2kw
HSG24-24-24-8		10000-12000bph	3.0kw
HSG32-32-32-12		15000-18000bph	5.5kw
HSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura low cost bottle filler factory for liquids-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura low cost bottle filler factory for liquids-3

EcoPura low cost bottle filler factory for liquids-4

Ozonated water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds. High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems. ECOPURA standard Machines are suitable for CIP

EcoPura low cost bottle filler factory for liquids-5

EcoPura low cost bottle filler factory for liquids-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304. Pick station with adjustable height. Torque and spring force of the capping head are adjustable. Flushable cap retainer. Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura low cost bottle filler factory for liquids-7

Company Features
1. Drawing on industry experience, EcoPura is the leading brand in the bottle filler field. The standard nature of these processes permits us to fabricate water filling .
2. We've been focusing on manufacturing high quality automatic liquid filling machine for domestic and abroad customers.
3. All testing reports are available for our small liquid filling machine. Since its establishment, Shenzhen EcoPura Water Equipment Co.,Ltd has been upholding the principle of bottle filler . Please contact us!

w******r

EcoPura small liquid filling machine is the outcome of the crystallization of human wisdom. It is developed adopting the knowledge of ergonomics with the combination of the features of different mobile phones. The product features excellent purification technology

y******z

EcoPura water filling is an inter infiltration result of various technologies. It is developed by the R&D team who adopts the mechanical technique, detection and sensing technology, automatic control technology, and servo drive technology. The product can ensure a high filtration rate

f******k

EcoPura water filling is tested to guarantee its safety. After it is completed, it will be placed in the electromagnetic field where features strong current and high voltage to check its stability and reliability. The product has a reliable electrical system, without any short circuit, or electric leakage occurring

f******z

EcoPura water filling complies with energy efficiency standards. It is proven to be compatible in the USA, the EU, and China in terms of minimum energy performance standards (MEPS) and class-average standards. The product features excellent torque accuracy

t******i

EcoPura small liquid filling machine is of flexible design. It is completely customizable on everything from the shape and size to the wrap and messaging. Adopting an advanced touch screen, it is easy to use

c******s

The product has been audited and certified to be compliant with the strictest quality requirement. The product is widely used for water production
