low cost automatic liquid filling machine 3in1 manufacturer for beverages

Product Comparison

EcoPura Water Treatment Equipment & Bottling Machine carefully selects quality raw materials. Production cost and product quality will be strictly controlled. This enables us to produce bottling line which is more competitive than other products in the industry. It has advantages in internal performance, price, and quality.Compared with other products in the same category, bottling line has the following competitive advantages.

Application Scope

EcoPura Water Treatment Equipment & Bottling Machine's bottling line is widely used in many industries.EcoPura Water Treatment Equipment & Bottling Machine is committed to providing customers with high-quality water treatment equipment as well as one-stop, comprehensive and efficient solutions.

Company Advantages
1. automatic liquid filling machine is proud of its special features of water bottling plant .
2. The product has great chemical resistance. It can protect against chemical attack or solvent reaction. It has resistivity to corrosive environments.
3. The product features dimensional stability. It can maintain its original dimensions when subjected to changes in temperature and humidity.
4. The product is highly acknowledged by customers in the industry.

Product Detail

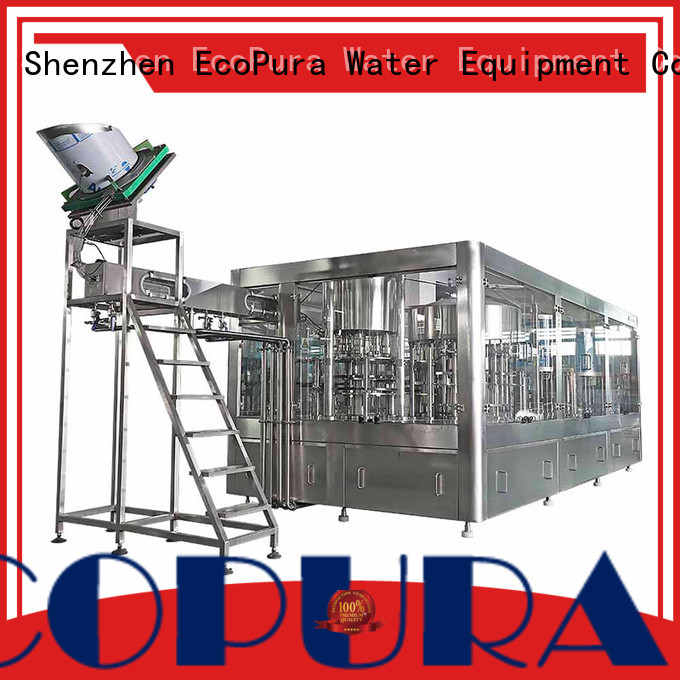

ECOPURA 3-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

EcoPura low cost automatic liquid filling machine manufacturer for beverages-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3	0.33L-1.5L Height:150-330mm Dia: 50-115mm	2000-3000bph	1.5kw	SIEMENS
HSG16-12-6		3000-4500bph	1.8kw
HSG24-16-6		5000-6000bph	2.2kw
HSG24-18-8		7000-8000bph	2.2kw
HSG24-24-8		10000-12000bph	3.0kw
HSG32-32-12		15000-18000bph	5.5kw
HSG38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura low cost automatic liquid filling machine manufacturer for beverages-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura low cost automatic liquid filling machine manufacturer for beverages-3

EcoPura low cost automatic liquid filling machine manufacturer for beverages-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems .ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch.ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura low cost automatic liquid filling machine manufacturer for beverages-5

EcoPura low cost automatic liquid filling machine manufacturer for beverages-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. EcoPura is committed to providing the finest automatic liquid filling machine .
2. Quality speaks louder than number in Shenzhen EcoPura Water Equipment Co.,Ltd.
3. We aim to meet customer needs accurately, respond to a change flexibly and speedily and provide top-level products in the world to gain customers’ trust from Quality, Cost and Delivery perspectives. Check it! We have set our target to grow together with our employees, manufacturers, and suppliers. We aim to increase profitability and efficiency together with our employees and customers. Our mission is to provide the highest quality products and focus on timely delivery. We are committed to providing comprehensive services that exceed customer requirements with reliable management and committed production control. Check it! The company's stated promise is ' To give the best service, make the best quality products'. We are working on cultivating a professional team of staff who can provide world-class customer service. Check it!
