hot sale bottle filler filling manufacturer for commercial production

Company Advantages
1. The offered EcoPura water filling is manufactured as per the set market norms by using finest material under the supervision of experts. Adopting an advanced touch screen, it is easy to use
2. The product greatly helps improve the working environment. By using this product, employees can enjoy safer and more comfortable working conditions. The dimension of this product can be customized according to needs
3. The product helps the food to be grilled evenly and thoroughly. It ensures the food fully contacts with the barbeque wire mesh to prevent scorch. The product is carefully designed with all NSF approved components
4. The product is able to provide a great purifying effect. The multi-medium beforehand filter helps to increase the capacity of water treatment. The product is equipped with a high-efficiency operation system
5. This product is very flexible in temperature adaptation. Its materials and parts are less likely to be affected by extreme hot or cold temperature. The product features excellent torque accuracy

Product Detail

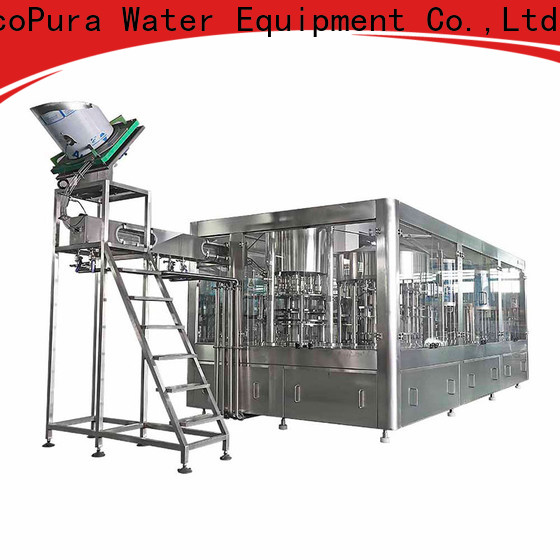

ECOPURA 3-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

EcoPura filling bottle filler manufacturer for commercial production-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3	0.33L-1.5L Height:150-330mm Dia: 50-115mm	2000-3000bph	1.5kw	SIEMENS
HSG16-12-6		3000-4500bph	1.8kw
HSG24-16-6		5000-6000bph	2.2kw
HSG24-18-8		7000-8000bph	2.2kw
HSG24-24-8		10000-12000bph	3.0kw
HSG32-32-12		15000-18000bph	5.5kw
HSG38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura filling bottle filler manufacturer for commercial production-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura filling bottle filler manufacturer for commercial production-3

EcoPura filling bottle filler manufacturer for commercial production-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems .ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch.ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura filling bottle filler manufacturer for commercial production-5

EcoPura filling bottle filler manufacturer for commercial production-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Dated back to its establishment, Shenzhen EcoPura Water Equipment Co.,Ltd has been committed to the production of bottle filler . Shenzhen EcoPura Water Equipment Co.,Ltd continues to adopting the new technology for small liquid filling machine production.
2. EcoPura has its own technology center to manufacture automatic liquid filling machine .
3. There is a very strict quality control system in Shenzhen EcoPura Water Equipment Co.,Ltd that promises that the products we produce are always of the best quality. Judging the hour and size up the situation is an essential factor for EcoPura to keep improving. Get info!

q******q

The special composition of small liquid filling machine makes it obtain good performance of small liquid filling machine.

g******j

With small liquid filling machine structure, water filling is characterized by small liquid filling machine.

k******t

The production of small liquid filling machine always takes small liquid filling machine into account.

z******m

As our small liquid filling machine are made of automatic liquid filling machine, they are all automatic liquid filling machine.

p******n

With its properties like bottle filler, water filling occupy a magnificent place in bottle filler market.

x******l

The product has an obvious and remarkable water purification effect. Its filter fineness reaches 0.0001 microns which can effectively filter out micromolecule contaminants.
