EcoPura affordable small liquid filling machine trade partner for beverages

We specialize in manufacturing small liquid filling machine. People are at the core of our company. They use their industry insights, a comprehensive portfolio of activities, and digital resources to create products that enable businesses to thrive.
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. Professional knowledge is used in the design of EcoPura water bottling plant . The R&D team utilizes the theories of the photoelectric effect, photochemistry reaction, and photothermal conversion to maximize the performance of the product. The product is easy to clean with no blind corners
2. Many of our customers praise that the design of the product makes it perfectly fit their device, which maximizes the dissipation effect. The product features excellent purification technology
3. It helps improve the overall efficiency of the machines. The inner components in the passage can offset or balance the differential pressure caused by pressure on the leakage objects, hence to reduce leakage. Equipped with a safety system, the product can detect the faults
4. The product stands out for its reliability. It adopts high-performance components and insulation materials and is designed with a solid housing. The product is hygiene with no bacteria or mold built up
5. The product has good insulation properties. It adopts a kind of insulating material with a certain thickness or density to minimizing the effect of conductivity. The product has a reliable electrical system, without any short circuit, or electric leakage occurring
Product Detail

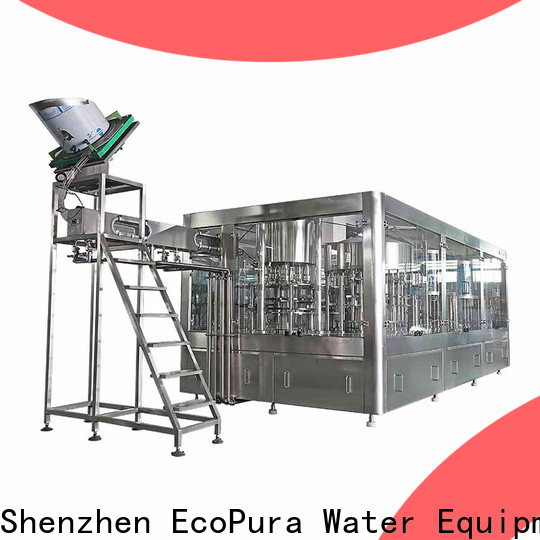

ECOPURA 3-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc


EcoPura affordable small liquid filling machine trade partner for beverages-1

Product Specification

Model

Bottle Spec

Capacity Cal@500ML

Power

PLC & HMI

HSG8-8-3

0.33L-1.5L
Height:150-330mm
Dia: 50-115mm

2000-3000bph

1.5kw

SIEMENS

HSG16-12-6

3000-4500bph

1.8kw

HSG24-16-6

5000-6000bph

2.2kw

HSG24-18-8

7000-8000bph

2.2kw

HSG24-24-8

10000-12000bph

3.0kw

HSG32-32-12

15000-18000bph

5.5kw

HSG38-38-14

18000-20000bph

7.5kw

EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.


EcoPura affordable small liquid filling machine trade partner for beverages-2

High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura affordable small liquid filling machine trade partner for beverages-3

EcoPura affordable small liquid filling machine trade partner for beverages-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems .ECOPURA standard Machines are suitable for CIP

Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch.ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura affordable small liquid filling machine trade partner for beverages-5

EcoPura affordable small liquid filling machine trade partner for beverages-6

Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. We specialize in manufacturing small liquid filling machine. People are at the core of our company. They use their industry insights, a comprehensive portfolio of activities, and digital resources to create products that enable businesses to thrive.
2. We have professional manufacturing managers. Years of expertise in manufacturing have made them enable to constantly improve the production process by implementing new technologies.
3. Over the years, we have achieved yearly increasing profits in overseas business. We have exported products to most parts of Asia and America, in which customers think highly of our competence. The company puts a great deal of effort into environmental safety. During production, we adhere to the principles of saving energy and generating zero pollution. In such a way, the company hopes to protect our environment. Inquire now!
The production of EcoPura small liquid filling machine follows the strict production process.
EcoPura small liquid filling machine is elaborately manufactured using the latest advanced technology and production method.
EcoPura small liquid filling machine is finely manufactured thanks to the applications of advanced technology and lean production system.
Advanced production technology: water bottling plant is manufactured following the guidance of lean production method and completed by the combined efforts of advanced equipment and skilled workers.
In the design of EcoPura water bottling plant, a professional market survey is carried out according to customers' demands. As a result of innovative ideas and technologies, it is user-friendly.
This product has the advantages of long service life and excellent performance.
