affordable bottle filler 4in1 factory for liquids

Application Scope

EcoPura Water Treatment Equipment & Bottling Machine's bottling line is commonly used in the following industries.EcoPura Water Treatment Equipment & Bottling Machine has many years of industrial experience and great production capability. We are able to provide customers with quality and efficient one-stop solutions according to different needs of customers.

Product Details

EcoPura Water Treatment Equipment & Bottling Machine adheres to the principle of 'details determine success or failure' and pays great attention to the details of bottle filling machine.EcoPura Water Treatment Equipment & Bottling Machine insists on the use of high-quality materials and advanced technology to manufacture bottle filling machine. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.

Company Advantages
1. EcoPura liquid filling machine is produced using a mature technique. For example, mercerizing, which is extensively applied in the high-end textile product industry, is adopted.
2. The product is safe to operate. During its operation, it will not generate dangerous effects such as electric current, electric arc, electromagnetic field, and static electricity.
3. It offers an ideal load-bearing capacity, which effectively avoids overloading and thus preventing stacking goods from falling and damaging.
4. Shenzhen EcoPura Water Equipment Co.,Ltd also benefits from increasing the service quality.
5. Shenzhen EcoPura Water Equipment Co.,Ltd has a good market reputation in bottle filler field.

Product Detail

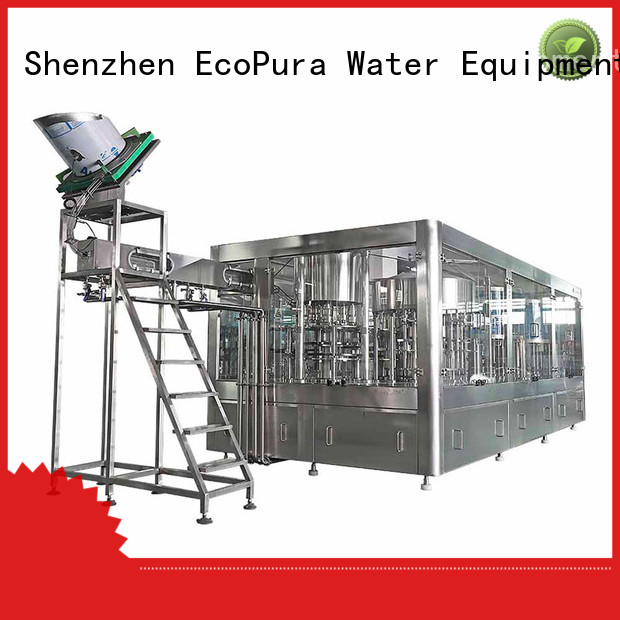

ECOPURA 3-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

EcoPura 4in1 bottle filler factory for liquids-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3	0.33L-1.5L Height:150-330mm Dia: 50-115mm	2000-3000bph	1.5kw	SIEMENS
HSG16-12-6		3000-4500bph	1.8kw
HSG24-16-6		5000-6000bph	2.2kw
HSG24-18-8		7000-8000bph	2.2kw
HSG24-24-8		10000-12000bph	3.0kw
HSG32-32-12		15000-18000bph	5.5kw
HSG38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 4in1 bottle filler factory for liquids-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 4in1 bottle filler factory for liquids-3

EcoPura 4in1 bottle filler factory for liquids-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems .ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch.ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura 4in1 bottle filler factory for liquids-5

EcoPura 4in1 bottle filler factory for liquids-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Manufacturing bottle filler , Shenzhen EcoPura Water Equipment Co.,Ltd has senior R&D team and veteran technicians as a strong support.
2. As a core value of EcoPura, the position of small liquid filling machine manufacture technology has been highly valued.
3. To be a world-class supplier of automatic liquid filling machine manufacturer is the consistent strategic goal of EcoPura. Please contact. The great aim of EcoPura is to provide the professional solutions for global customers! Please contact. Shenzhen EcoPura Water Equipment Co.,Ltd adheres to the concept of liquid filling machine and creates the ultimate quality of water bottling plant . Please contact.

Model	GD12-4 filler and crown capper
Filling head	12 balanced pressure filling heads
Capping heads	4 Capping heads
Filling temperature(°C)	Less than 5
Backpressure when filling	0.15~0.35Mpa
Capacity	1500 ~ 3500 BPH for 600ml glass bottle
Bottle size	Diameter Φ50~Φ76 ; Height: 190-290mm
Main motor	2.2 (125~1250rpm) AC380V 50Hz
Electric parts	Mitsubishi brand of transducer, and PLC, Siemens brand of electric apparatus
Overall dimension (mm)	2060×1100×2130
Weight(kg)	2500

Product Description

HZK-160 Digital Control Pump Liquid filler

HZK-160 series Digital control liquid filler is the use of a computer on the micro-pump in the filling time, the motor speed and other factors on the control, to achieve uniform, Filling accuracy of the liquid filling method is extremely small.Widely used in pharmaceutical, chemical, food, beverage, oil, cosmetics industry, suitable for low viscosity, non-granular liquid packaging, small batch production.

e******m

Shenzhen EcoPura Water Equipment Co.,Ltd Relying on years of accumulated production experience, strong technology and research and development strength, advanced equipment and production lines, it is more handy in the production and manufacturing of small liquid filling machine, knowing how to reasonably supervise and control each production step and process, Provide guarantee for the production of high-quality products.

n******r

Shenzhen EcoPura Water Equipment Co.,Ltd has many years of production experience, exquisite production technology, strong production strength, and can produce high-quality water bottling plant.

d******g

Shenzhen EcoPura Water Equipment Co.,Ltd has a modern production workshop and advanced water bottling plant production equipment, and has established a strict quality management system, and quality inspection personnel will conduct inspections in every link of water bottling plant production to ensure water bottling plant good quality and high quality excellent.

i******x

The company attaches great importance to product quality and strives for excellence in all aspects of production. The small liquid filling machine produced are exquisite in workmanship, excellent in quality and strong in practicability.

q******q

Shenzhen EcoPura Water Equipment Co.,Ltd Passed various relevant national certifications, liquid filling machine produced have relevant quality inspection certificates, the quality of the products is guaranteed, and customers are more assured in purchasing.

k******a

It has the required colorfastness. It can withstand the normal cleaning/dry cleaning cycle without fading. The whole surface of the product is nonconductive
