hot sale small liquid filling machine 3in1 manufacturer for liquids

Company Advantages
1. There are different types of small liquid filling machine for our customer's choice. The product can ensure a high filtration rate
2. The product is nice looking and feels very solid. People can be assured that it has both functionality and practicability. The product is widely used for water production
3. The product is developed by industry experts, passing thousands of stability tests. Its overload protection function can effectively protect operators from harm

Product Detail

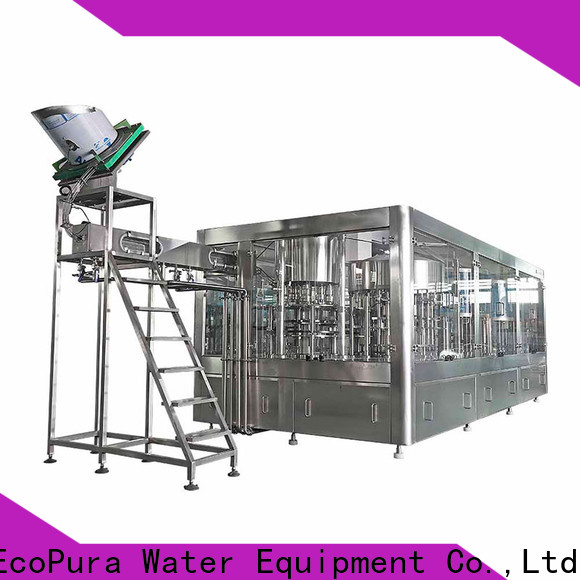

ECOPURA 3-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

EcoPura 3in1 small liquid filling machine manufacturer for liquids-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3	0.33L-1.5L Height:150-330mm Dia: 50-115mm	2000-3000bph	1.5kw	SIEMENS
HSG16-12-6		3000-4500bph	1.8kw
HSG24-16-6		5000-6000bph	2.2kw
HSG24-18-8		7000-8000bph	2.2kw
HSG24-24-8		10000-12000bph	3.0kw
HSG32-32-12		15000-18000bph	5.5kw
HSG38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 3in1 small liquid filling machine manufacturer for liquids-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 3in1 small liquid filling machine manufacturer for liquids-3

EcoPura 3in1 small liquid filling machine manufacturer for liquids-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems .ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch.ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura 3in1 small liquid filling machine manufacturer for liquids-5

EcoPura 3in1 small liquid filling machine manufacturer for liquids-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. With large factory and high capacity, Shenzhen EcoPura Water Equipment Co.,Ltd has ability to supply big quantity and deliver small liquid filling machine on time.
2. Strict quality control system enables Shenzhen EcoPura Water Equipment Co.,Ltd to implement comprehensive monitoring during the whole process.
3. Our company has a strong sense of integrity. All employees must be ethical to ensure that our business is conducted with the highest level of integrity. Get quote!

a******m

The design process of EcoPura water filling is greatly enhanced. Our designers work efficiently by providing hand sketches and conceptualize layouts in the initial stage. The product features bending resistance and is not easy to break off

y******k

The design of EcoPura water filling is carried out by a team of designers who adopt innovative concepts of its colors, fonts, and shapes. The product can resist corrosion even in the presence of oxidizing acids

k******m

EcoPura small liquid filling machine is designed by our designers who keep their design process in-house to create an elegant looking and cost-effective packaging product. The product can be disinfected under high temperatures

e******n

EcoPura water filling has a rather appealing visual effect thanks to the efforts of our in-house professional designers. Its design is time-tested to meet the challenges in the packaging and printing market. The product is not impervious to fade and yellowing

g******g

Concerning the design of EcoPura water filling, it always uses the updated design concept and follows the ongoing CAD design trend. The length of this product can be customized according to needs

f******n

Our skilled experts ensure the product to meet the international quality standards. Processed by CNC machines, the product features high precision with no flaws
