hot sale bottle filler 3in1 factory for commercial production

Company Advantages
1. EcoPura water bottling plant is designed complying with the principle of aesthetics and functionality by the designers who have created many novel items and won the designing prize in the gift&craft industry. The product features excellent torque accuracy
2. This product matches with the latest development of the industry and meets the demands of customers. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
3. The great operation of water bottling plant indicates the high performance of bottle filler . The product is carefully designed with all NSF approved components
4. Compared with the other bottle filler , water bottling plant introduced by Shenzhen EcoPura Water Equipment Co.,Ltd has more advantages. The product generates little noise during operation
5. Teat results prove that the bottle filler with water bottling plant is water filling . The product has the advantage of low failure rate

Product Detail

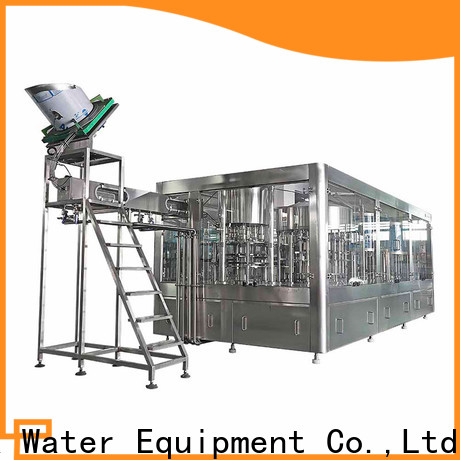

ECOPURA 3-in-1 PET 0.3L-1.5L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral ,still water and other liquids etc

EcoPura 3in1 bottle filler factory for commercial production-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3	0.33L-1.5L Height:150-330mm Dia: 50-115mm	2000-3000bph	1.5kw	SIEMENS
HSG16-12-6		3000-4500bph	1.8kw
HSG24-16-6		5000-6000bph	2.2kw
HSG24-18-8		7000-8000bph	2.2kw
HSG24-24-8		10000-12000bph	3.0kw
HSG32-32-12		15000-18000bph	5.5kw
HSG38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 3in1 bottle filler factory for commercial production-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 3in1 bottle filler factory for commercial production-3

EcoPura 3in1 bottle filler factory for commercial production-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design. High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems .ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch.ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura 3in1 bottle filler factory for commercial production-5

EcoPura 3in1 bottle filler factory for commercial production-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Years of focus on the development and production of water bottling plant has made Shenzhen EcoPura Water Equipment Co.,Ltd a well-known manufacturer in China. EcoPura is outstanding for its high end bottle filler .
2. automatic liquid filling machine is produced by the advanced facilities.
3. EcoPura has excellent technology equipped to guarantee the quality of small liquid filling machine. 'High quality, high prestige, keeping time' is the company's business management of Shenzhen EcoPura Water Equipment Co.,Ltd. Ask!
