automatic water bottling equipment bottling factory for industrial production

Latest products

Shrinking Wrapping SWP200

Auto Carton Packing Machine

Conveyor Machine

3L-6L bottle blow molding machine

Product Information
Feedback

Company Advantages
1. EcoPura water bottling equipment is professionally designed. The Reverse Osmosis Technology, Deionization Technology, and Evaporative Cooling Supply Technology have all been taken into considerations. The product is easy to clean with no blind corners
2. The product answers to the needs in the markets and will be more widely used in the future. The operation of this product is controlled by microcomputer
3. The product marks the best quality standards in the industry. The dimension of this product can be customized according to needs
4. The product is unparalleled when it comes to quality, long-lasting performance and durability. It can be configured in a straight line or in an L-shaped configuration

Product Detail

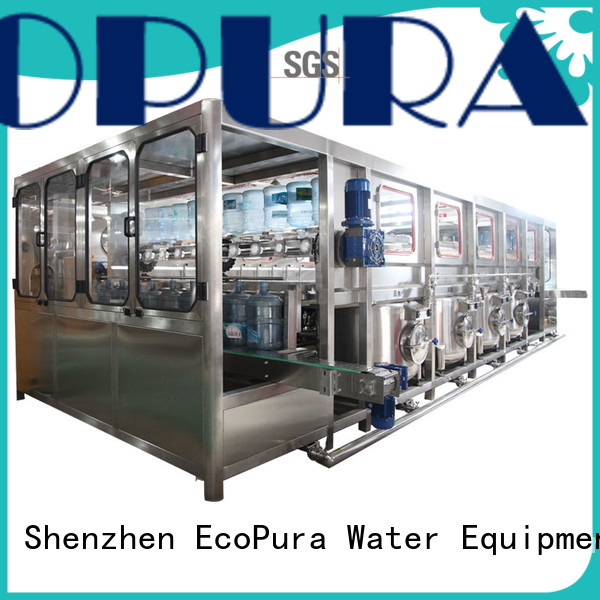

ECOPURA 5gallon bottle washing filling capping machine HSG600 with capacity 600bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

automatic water bottling equipment bottling factory for industrial production-1

automatic water bottling equipment bottling factory for industrial production-2

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine .Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing,

automatic water bottling equipment bottling factory for industrial production-3

automatic water bottling equipment bottling factory for industrial production-4

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is a leading company in the industry of water bottling equipment in China.
2. Modern technology have been constantly introduced into EcoPura.
3. It is our determination to create EcoPura to be the leading water filling equipment manufacturer. Call!

i******n

water bottling equipment bears the signature of exquisite craftsmanship. Its surface is not to get rusty

u******t

Our water filling equipment wins great popularity in global market thanks to its high quality raw material. Made of the latest composite materials, it features high-temperature resistance

u******h

Moreover, we make required changes in water filling equipment in order to match with the latest development of the industry. Aluminum alloy is applied to the product to prevent distortion

g******v

Exquisite craftsmanship with aesthetic and elegant design style is a promise on water filling equipment. It has an alarm report function when finishing the test work

u******m

With its own professional development and design team, Shenzhen EcoPura Water Equipment Co.,Ltd has enough capability to produce water plant machine price based on the needs of customers. The product is highly resistant to oxidation

d******r

The product USES the reliable examination instrument to carry on the examination, guarantees the product quality to be reliable, the performance is good. Through hardening treatment, it is sturdy enough
