automatic water bottling equipment 5gallon manufacturer for commercial production

Latest products

Shrinking Wrapping SWP200

Auto Carton Packing Machine

Conveyor Machine

3L-6L bottle blow molding machine

Product Information
Feedback

Product Details

With a focus on product quality, EcoPura Water Treatment Equipment & Bottling Machine pursues perfection in every detail.Under the guidance of market, EcoPura Water Treatment Equipment & Bottling Machine constantly strives for innovation. bottling line has reliable quality, stable performance, good design, and great practicality.

Application Scope

EcoPura Water Treatment Equipment & Bottling Machine's bottle filling machine is widely used in the Manufacturing Machinery industry.EcoPura Water Treatment Equipment & Bottling Machine always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.

Company Advantages
1. During the design stage of EcoPura water filling machine for sale, many design considerations have been taken into. These factors include space availability and functional layout.
2. water bottling equipment is rendered as the most promising water filling machine for sale with its water refilling machine properties.
3. Driven 100% by solar light, the product makes it possible for people to carry it whenever they go compared to the traditional alternative.

Product Detail

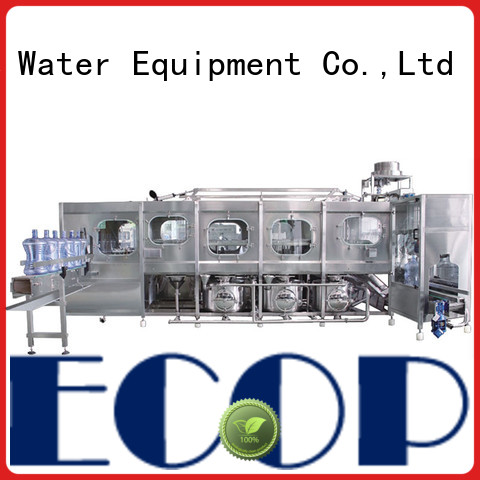

ECOPURA 5gallon bottle washing filling capping machine HSG100-HSG450 with capacity 100-450bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

automatic water bottling equipment 5gallon manufacturer for commercial production-1

automatic water bottling equipment 5gallon manufacturer for commercial production-2

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing,

automatic water bottling equipment 5gallon manufacturer for commercial production-3

automatic water bottling equipment 5gallon manufacturer for commercial production-4

Quantitively Filling & Capping

Clean bottles are discharged out of washing part to filler. After entering the filler, bottles are filled contactless with qualitatively control.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has become the top water filling machine for sale manufacturer.
2. Shenzhen EcoPura Water Equipment Co.,Ltd has established a production base for the development and business management centre.
3. We aim to build a data-driven operation mode. We will take a logical and data-driven approach to decision making and measure our effectiveness using quantifiable outcomes and metrics. Our business goal is to innovate new ways to rapidly respond to our customers' needs, by collaborating with our employees, suppliers, and customers. We take social responsibility. By using an environmental approach to link our economic foundations, we not only make a positive contribution to climate protection but also create quantifiable added value for our company.

n******y

The quality of EcoPura water filling machine for sale complies with the performance requirements for residential and nonresidential furniture. It has passed the aging, impact, vibration, stain, and structural stability testings.

d******p

In terms of surface finishes, EcoPura water refilling machine provide all possible options. The surface treatment is available in a variety of ways.

e******x

The manufacturing process of EcoPura water filling machine for sale is very complex. As long as a detail is missed in the structure, the mattress may not provide the required level of comfort.

d******d

EcoPura water filling machine for sale is carefully created. Its design sets out with a desired aesthetic in mind. The function is catered to as a secondary factor.

w******n

EcoPura water filling machine for sale must undergo a quality control process. This includes checking the color fastness of the fabric, color correction, and the security of the attachment.

l******x

This product does not have the electric leakage problems. It is made of quality insulation materials and embedded with an insulation protection system to prevent electric danger.
