automatic water bottling equipment 1200bph manufacturer for distribution

Automatic water bottling equipment 1200bph manufacturer for distribution

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

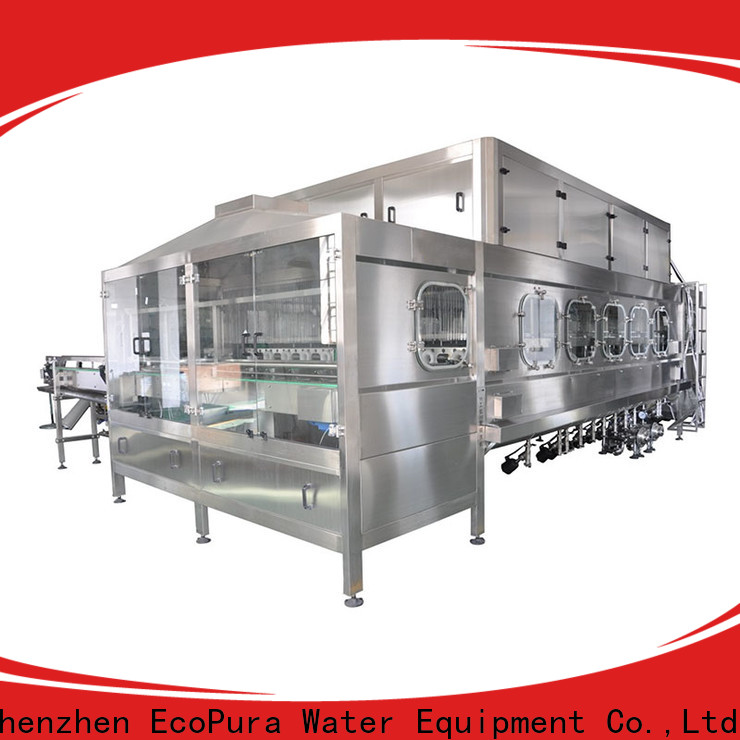

ECOPURA 5gallon bottle washing filling capping machine HSG1200 with capacity 1200bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

automatic water bottling equipment 1200bph manufacturer for distribution-1

automatic water bottling equipment 1200bph manufacturer for distribution-2
automatic water bottling equipment 1200bph manufacturer for distribution-3
automatic water bottling equipment 1200bph manufacturer for distribution-4

automatic water bottling equipment 1200bph manufacturer for distribution-5

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

automatic water bottling equipment 1200bph manufacturer for distribution-6

automatic water bottling equipment 1200bph manufacturer for distribution-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


water bottling equipment It is made of imported high-quality raw materials and processed by advanced technology. In addition, water bottling equipment will be tested by relevant national departments after the production and processing is completed. It meets the national quality standards. It is a product with stable performance and high quality. Quality product.
We have a professional, dedicated and dedicated management team and a group of experienced production personnel. The team members work hard, insist on adopting advanced design concepts and using unique production technology to manufacture water bottling equipment, which makes water bottling equipment not only reasonable in structure, but also And the quality is stable.
The company attaches great importance to product quality and strives for excellence in all aspects of production. The water refilling machine produced are exquisite in workmanship, excellent in quality and strong in practicability.
water refilling machine From raw material selection, production to processing, there are professionals to conduct testing. Not only that, water refilling machine After the production is completed, it will be inspected by relevant national departments to ensure that it meets international standards and is of high quality. , high-quality products of excellent quality.
We insist on using high-quality materials and using advanced technology to produce water bottling equipment, and strictly control each production process, so that all water bottling equipment produced meet strict quality standards.
With the addition of this product, the bedroom will be cozier and comfier than ever. It makes the bedroom look amazing.
