Company Advantages1. EcoPura soda filling machine price features scientific structure and aesthetic appearance. It is well-designed by our dedicated designers who are equipped with innovative design ideas. The product features excellent purification technology
2. People agreed that this product is an indispensable item in their daily life. It adds great convenience to many indoor or outdoor decorative materials. The operation of this product is controlled by microcomputer
3. Superior performance and long service life make the product competitive. The product can enhance the speed, accuracy, and efficiency of workers
4. Strict quality control system is adopted to provide strong guarantee for product quality. The use of this product helps in increasing the production of drinks
5. This product exceeds industry standards for performance, durability and availability. It can be configured in a straight line or in an L-shaped configuration

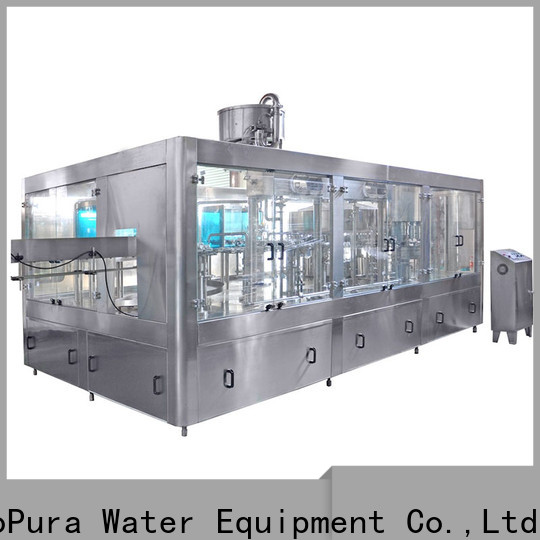

ECOPURA 4-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc
Model |
Bottle Spec |
Capacity Cal@500ML | Power | PLC & HMI |
DHSG16-16-12-6 | 0.33L-1.5L
Height:150-330mm
Dia: 50-115mm |
3000-3500bph |
1.8kw | SIEMENS |
DHSG24-24-16-6 | 4000-5000bph | 2.2kw |
DHSG24-24-18-8 | 5000-6000bph | 2.2kw |
DHSG24-24-24-8 | 8000-9000bph | 3.0kw |
DHSG32-32-32-12 | 10000-12000bph | 5.5kw |
DHSG38-38-38-14 | 12000-15000bph | 7.5kw |
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us. |
High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316 Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.
Ozonated water Washing Part
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316
hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.
Filling Part
Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.
The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically
Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve
Hygiene and stable filling processes − Separate gas channels for pressurization and snifting
ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer
Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality.
The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process.
All main parts made of stainless steel AISI304
Pick station with adjustable height
Torque and spring force of the capping head are adjustable
Flushable cap retainer
Motorised height adjustment of the capper top part with bottle selection feature
Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing
As a renowned producer of soft drink filling machine , Shenzhen EcoPura Water Equipment Co.,Ltd has a massive market share. Professionals are our valuable assets. They have deep knowledge of specific end markets. This enables the company to develop customized solutions to meet specific customer requirements.
2. Human resources are one of our company's strengths. It is worth emphasizing the R&D team. They are acquainted with the market trend and have deep expertise and creativity to create new products that may lead trend.
3. We have set up a manufacturing team. They are familiar with complex and sophisticated new machine tools and enable us to meet the complicated needs of our customers. We are committed to realizing our sustainability goals. We work with our customers in a safe, energy-efficient and environmentally conscious manner.
