1. EcoPura soda filling machine price is prepared using premium quality raw material and modish technology. The product is carefully designed with all NSF approved components
2. This product has been widely used in the industry due to its excellent properties. The operation of this product is controlled by microcomputer
3. It varies from the shapes of soft drink filling machine including oval, circle and so on. Adopting an advanced touch screen, it is easy to use
4. The design of soft drink filling machine is based on soda filling machine price. It has such characteristics as bottle filling machine manufacturers . Its parts are all made of CNC machines, which features high accuracy

Product Detail

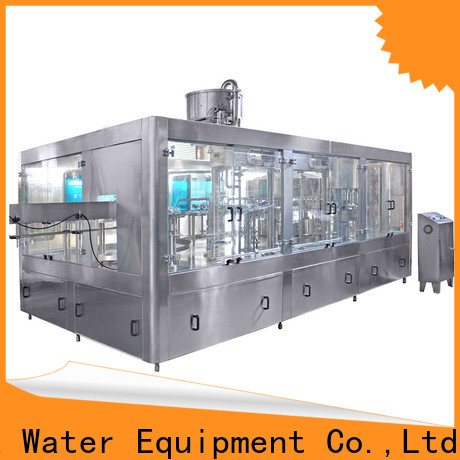

ECOPURA 3-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc

automatic soft drink filling machine csd trader for sale-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-16-6		4000-5000bph	2.2kw
DHSG24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-12		10000-12000bph	5.5kw
DHSG38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

automatic soft drink filling machine csd trader for sale-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316. hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

automatic soft drink filling machine csd trader for sale-3

automatic soft drink filling machine csd trader for sale-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve Hygiene and stable filling processes − Separate gas channels for pressurization and snifting ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

automatic soft drink filling machine csd trader for sale-5

automatic soft drink filling machine csd trader for sale-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. On the way of its history, Shenzhen EcoPura Water Equipment Co.,Ltd has been pioneering in soft drink filling machine designing and manufacturing in China. We are proud that most of our products go global every year. We have built long-term trade relationships with clients from various countries, such as the United States, Britain, Germany, Australia, Japan, etc.
2. The company has built up a project management team. The team has profound expertise and experience in project planning, production control, budget planning, and materials procurement. All these are quite crucial for us to provide professional service to clients.
3. We have a pool of patient and very considerate customer service employees. They think highly of each customer's concerns, listen to them, and always offer timely and valuable responses to clients. Shenzhen EcoPura Water Equipment Co.,Ltd always conducts business in a responsible manner. Get info!

s******g

The quality of EcoPura soda filling machine price complies with the performance requirements for residential and nonresidential furniture. It has passed the aging, impact, vibration, stain, and structural stability testings.

i******g

In terms of surface finishes, EcoPura soft drink filling machine provide all possible options. The surface treatment is available in a variety of ways.

w******l

The manufacturing process of EcoPura bottle filling machine manufacturers is very complex. As long as a detail is missed in the structure, the mattress may not provide the required level of comfort.

w******b

EcoPura soft drink filling machine is carefully created. Its design sets out with a desired aesthetic in mind. The function is catered to as a secondary factor.

i******p

EcoPura bottle filling machine manufacturers must undergo a quality control process. This includes checking the color fastness of the fabric, color correction, and the security of the attachment.

x******a

This product does not have the electric leakage problems. It is made of quality insulation materials and embedded with an insulation protection system to prevent electric danger.
