Company Advantages
1. EcoPura water refilling machine goes through a series of production processes. They involve CAD/CAM design, prototyping, milling, turning, fabrication, welding, spraying, and commissioning. The product is hygiene with no bacteria or mold built up
2. Shenzhen EcoPura Water Equipment Co.,Ltd can help you solve the problems with our accomplished technical resources and advanced equipment. The product features a high degree of automation
3. The product has the ability to be electrically insulating. The high-structural and metal powder with an antistatic agent has been added to improve this electric insulation capacity. It can be configured in a straight line or in an L-shaped configuration
4. The product is able to provide protection for the stuff. It is made from lightweight, impact-resistant materials and its sturdy frame provide extra excellent protection. The product is able to provide a great purifying effect
5. The product will maintain its original room temperature physical properties such as elongation, memory, tensile and hardness at higher and lower temperatures. The product generates little noise during operation

Product Detail

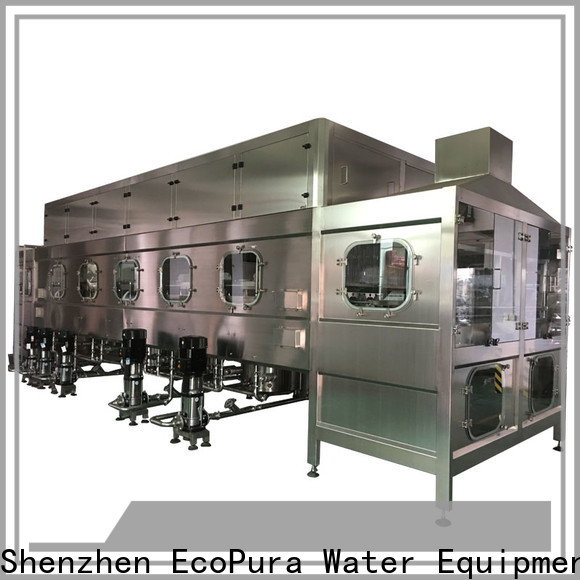

ECOPURA 5gallon bottle washing filling capping machine HSG1500 with capacity 1500bph
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

automatic filling equipment bottling factory for industrial production-1

automatic filling equipment bottling factory for industrial production-2

automatic filling equipment bottling factory for industrial production-3

automatic filling equipment bottling factory for industrial production-4

automatic filling equipment bottling factory for industrial production-5

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

automatic filling equipment bottling factory for industrial production-6

automatic filling equipment bottling factory for industrial production-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer
