Product Detail

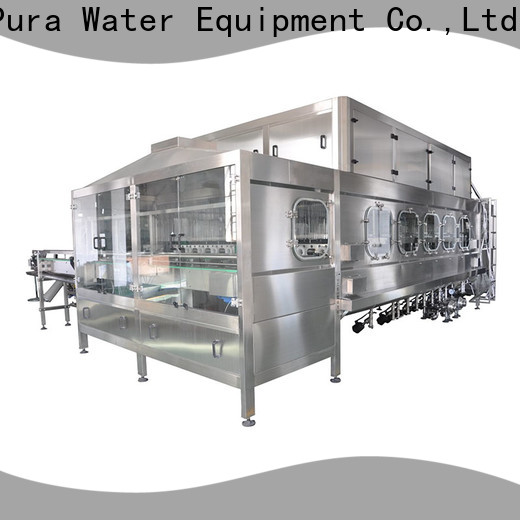

ECOPURA 5gallon bottle washing filling capping machine HSG1200 with capacity 1200bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

automatic bottled water machine water more buying choices for industrial production-1

automatic bottled water machine water more buying choices for industrial production-2
automatic bottled water machine water more buying choices for industrial production-3
automatic bottled water machine water more buying choices for industrial production-4

automatic bottled water machine water more buying choices for industrial production-5

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

automatic bottled water machine water more buying choices for industrial production-6

automatic bottled water machine water more buying choices for industrial production-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


Balancing specifications and creativity is a key point in EcoPura filling system design. Target audience, appropriate use, cost efficiency and feasibility are always kept in mind before starting with its research and concept design. It can be designed with a chest strap to take the pressure off shoulder and back muscles
Many factors are being considered for designing EcoPura filling system. They are the size of space, colour, durability, cost, features, comfort, materials, etc. Its interlocking discs can be button snaps, Velcro closure, buckle, etc
There are many principles of design covered in EcoPura bottled water machine. They are Balance (structural and visual), Continuity, Juxtaposition, Pattern, and Scale & Proportion. It is popular in exhibitions such as ISPO Munich - the Leading Sports Fair
The design concept of EcoPura bottled water machine is framed properly. It has successfully combined functional and aesthetic perspectives into a three-dimensional design. It is highly customizable in terms of colour, size, material, etc
Made by teams of professionals, the quality of EcoPura filling system is guaranteed. These professionals are interior designers, decorators, technical experts, site supervisors, etc. Additional straps can be designed to keep things cinched tight
filling system combines qualities of bottled water machine . This product can be Made in China or Made in Burma
