Company Advantages1. EcoPura mineral water filling machine is developed with an operating principle - using the heat source and air flow system to reduce the water content of the food. It has a robust design, supported by an aluminum plate
2. The product plays an important role in many industries. It not only benefits workers by relieving their stress but also benefits manufacturers by cutting labor costs. The operation of this product is controlled by microcomputer
3. Implementing quality management on the product helps reduce customers' costs. The use of this product helps in increasing the production of drinks

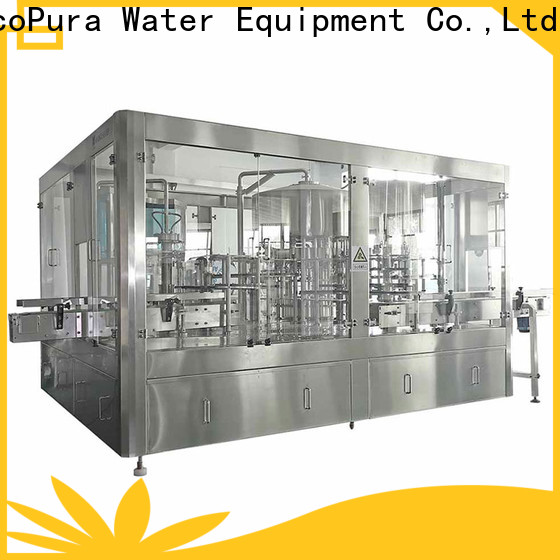

ECOPURA 3-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc
Model |
Bottle Spec |
Capacity Cal@5L | Power | PLC & HMI |
HSG10-10-5 | 3L-10L | 1200-1500bph | 2.2kw | SIEMENS |
HSG12-12-5 |
1500-2000bph | 3.0kw |
HSG14-14-5 |
2000-2500bph | 4.0kw |
HSG16-16-5 |
2500-3000bph | 5.5kw |
| EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us. |
High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components
Washing Part
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.
Filling Part
Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.
Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge.
Microbiological safety -Contact-free filling and optimized machine design
High filling accuracy -Use of flow meters and infinitely variable flow speeds
High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems
ECOPURA standard Machines are suitable for CIP
Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutchends the capping process. All main parts made of stainless steel AISI304 . Pick station with adjustable height Torque and spring force of the capping head are adjustable . Flushable cap retainer . Motorised height adjustment of the capper top part with bottle selection feature
Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing
With the first-class level equipment, advanced R&D ability, high quality mineral water filling machine, Shenzhen EcoPura Water Equipment Co.,Ltd plays a big role in this industry. There are professional team to conduct inspection for quality of liquid filler .
2. The application of advanced technology results in water bottle filling machine prevailing over the industry.
3. Our mineral water filling machine can be used for multiple purposes. The tight network of sales and service training stations of Shenzhen EcoPura Water Equipment Co.,Ltd makes it easier to provide customers with more convenient services. Check now!
