new mineral water filling machine 4in1 international trader for sale

Company Advantages
1. EcoPura mineral water filling machine shows the outstanding performance, after years of improvement in the production process. The production process is managed in an efficient manner and therefore this product is produced at a quick rate. It can be configured in a straight line or in an L-shaped configuration
2. Shenzhen EcoPura Water Equipment Co.,Ltd offers the competitive advantage of mineral water filling machine in quality. The operation of this product is controlled by microcomputer
3. The product takes full advantage of the expertise of acoustics. The retractable seal on the top and bottom can effectively interlock together to achieve the desired acoustic seal. The product has a reliable electrical system, without any short circuit, or electric leakage occurring
4. The product has reliable performance. It has withstood tough performance test and function optimally even in extreme conditions. Adopting an advanced touch screen, it is easy to use
5. It features excellent touch feeling. The door face has been treated with polishing and high-quality paint which enhance its smooth level. The product is equipped with a high-efficiency operation system

Product Detail

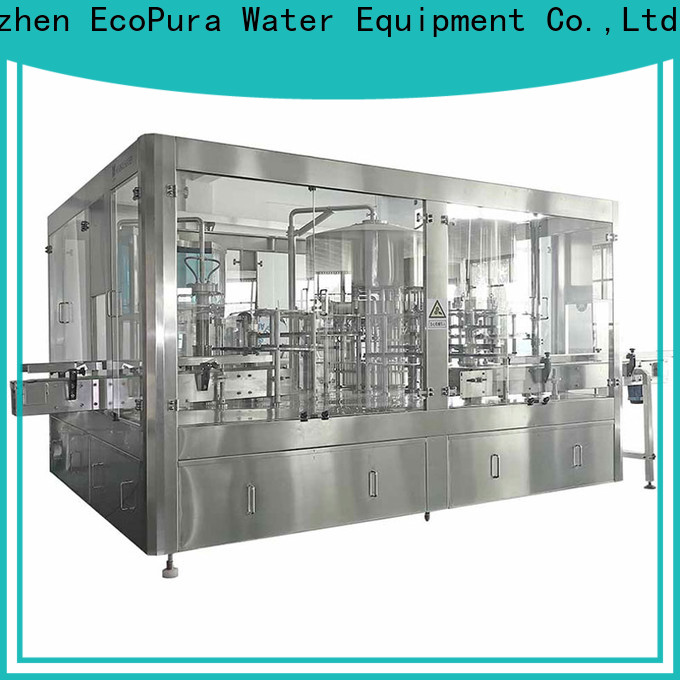

ECOPURA 3-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

new mineral water filling machine 4in1 international trader for sale-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

new mineral water filling machine 4in1 international trader for sale-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

new mineral water filling machine 4in1 international trader for sale-3

new mineral water filling machine 4in1 international trader for sale-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.
Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge.
Microbiological safety -Contact-free filling and optimized machine design
High filling accuracy -Use of flow meters and infinitely variable flow speeds
High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems
ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutchends the capping process. All main parts made of stainless steel AISI304 . Pick station with adjustable height Torque and spring force of the capping head are adjustable . Flushable cap retainer . Motorised height adjustment of the capper top part with bottle selection feature

new mineral water filling machine 4in1 international trader for sale-5

new mineral water filling machine 4in1 international trader for sale-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. EcoPura has attained dominant position for its excellent mineral water filling machine and professional service.
2. Excellent overall performance of water bottle filling machine keeps it the best operation situation for the long term.
3. Excellence comes from our professionalism in the liquid filler industry.
