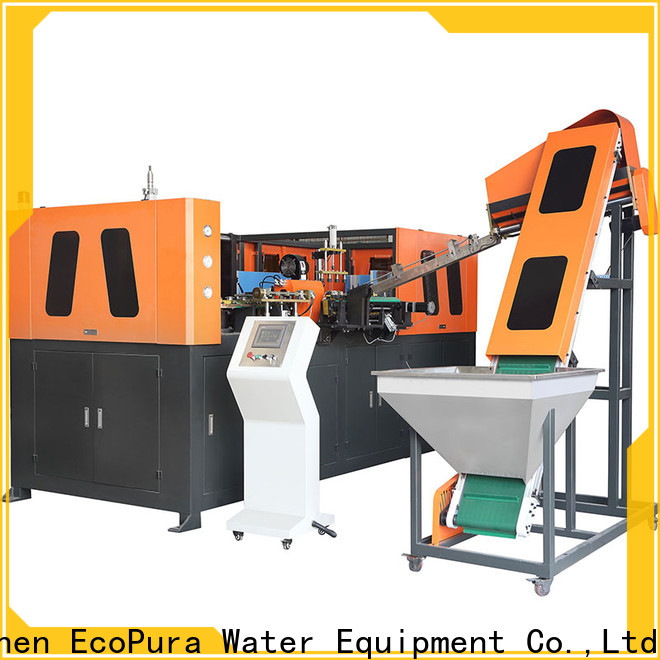

new bottle blowing machine 3l6l wholesale for b2b

Product Detail

PET Bottle Molding Solutions

At EcoPura, You can find the best solutions for your bottles blow molding demand, customized services from your bottle shape ideas to final mold confirmation, EcoPura will offer the flexibility to choose a size and shape that best fit your specific needs. All blowers are designated base on Simply Operate ,Energy Saving, fast changeover time and stable performance, the result,

new bottle blowing machine 3l6l wholesale for b2b-1

new bottle blowing machine 3l6l wholesale for b2b-2

Product Parameter

Model	EPC-2C	EPC-4C
Mold Cavities	2	4
Speed	2000bph	4000bph
Bottle Size	2L	2L
Bottle Height	＜330 mm	＜330 mm
Bottle Neck	Φ18-Φ38 mm	Φ18-Φ38 mm
Bottle Body Diameter	Φ106 mm	Φ106 mm
Working Pressure	7-9kg/cm2	7-9kg/cm2
Low Pressure Air Consumption	1000L/min	1600L/min
Blowing Air Pressure	25-35kg/cm2	25-35kg/cm2
High Pressure Air Consumption	1500/min	3000L/min
Heating lamp	32pcs	32pcs
Max Heating Powe	24kw	40kw
Installation Power	27kw	43kw
Practical Power	19kw	21.5kw
Machine Size	L2.25mW1.6mH1.7m	L4.5mW1.6mH1.9m
Weight	2500kgs	3500kgs

Product Advantages

♦ Up to 98% production efficiency
♦ A scrap rate of under 0.1%
♦ Changeovers in less than 25 minutes
♦ Oven electrical consumption cut by up to 25%
♦ Compressed air savings up to 20%

a******p

EcoPura bottle blowing machine is developed under advanced technologies. It is designed using CAD, fabricated by CNC technology, and controlled by sensor technology.

o******a

The design of EcoPura moulding machine resorts to different technologies. Take its print circuit board as an example, it is designed using CAD, CAM, and light painting technology by the technicians.

a******o

EcoPura moulding machine has been tested in many aspects, such as testing of power consumption in off mode, testing of power consumption in standby mode, or availability of standby or power-saving functions.

h******m

EcoPura moulding machine has to pass through a series of rigorous tests in a lab environment. For example, its electrical components and accessories have to be tested to comply with health and safety standards.

h******c

EcoPura bottle blowing machine has been evaluated in many aspects. They include electrical safety, sanitation, EMC, energy efficiency, electrical shock&leakage, and more.

a******f

The product is environmentally friendly. The ammonia refrigerant used breaks down quickly in the environment, minimizing potential environmental impact.
