hot sale water bottle filling machine filling producer for distribution

Company Advantages
1. EcoPura fill line is elaborately manufactured using the latest advanced technology and production method. The product can ensure a high filtration rate
2. With this product, manufacturers can transfer more R&D, product design or advertising investments instead of competing with others to increase productivity. The product has the advantage of low failure rate
3. It is produced under strict quality control standards with our state-of-art facilities. The product has been certified under UL and CE
4. The product is in compliant with the strictest quality standards thanks to the implementation of a complete quality management system. The product is carefully designed with all NSF approved components

Product Detail

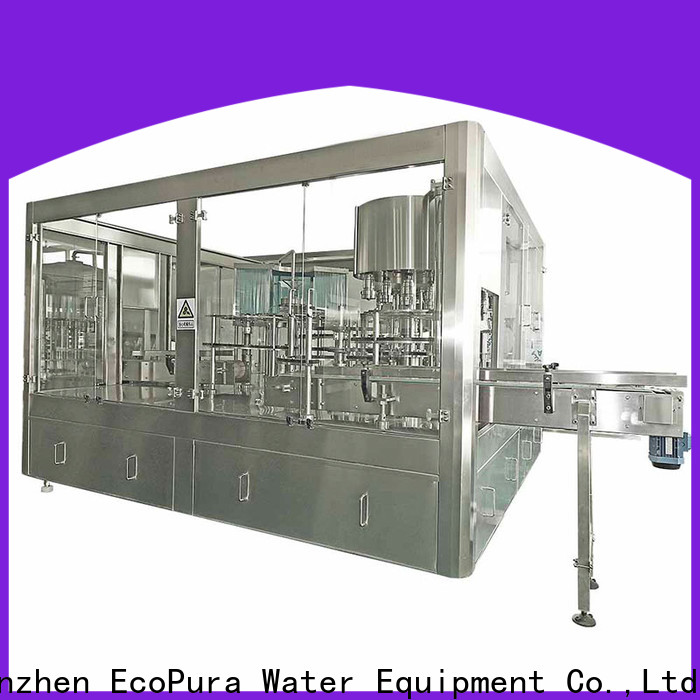

ECOPURA 4-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

hot sale water bottle filling machine filling producer for distribution-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

hot sale water bottle filling machine filling producer for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

hot sale water bottle filling machine filling producer for distribution-3

hot sale water bottle filling machine filling producer for distribution-4

Ozonated Water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems ECOPURA standard Machines are suitable for CIP

hot sale water bottle filling machine filling producer for distribution-5

hot sale water bottle filling machine filling producer for distribution-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

hot sale water bottle filling machine filling producer for distribution-7

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has been focusing on the production of fill line for many years. We stand out for providing a wide range of innovative products.
2. Our quality check team is crucial to our company. They utilize their years of QC experience to ensure the highest standards of product quality and safety.
3. Shenzhen EcoPura Water Equipment Co.,Ltd unswervingly adheres to satisfying the needs of customers water bottle filling machine . Inquiry!

g******y

From the materials to designs, EcoPura fill line is totally guaranteed by our professional expertise. The product can be used in harsh industrial environments

m******s

EcoPura fill line is designed with a trendy and aesthetically-appealing look. The product has the advantage of low energy consumption

v******o

EcoPura water bottle filling machine is designed with an innovative and attractive appearance. The product is simple and convenient to operate

p******p

EcoPura fill line is designed with an aesthetically-pleasing look that sets it apart from the ordinary. It is resistant to breakage with its sturdy frame

y******f

EcoPura fill line is manufactured as per the current industry standards. The product can largely reduce waste materials

l******g

fill line The design is scientific and reasonable, the structure is tight and compact, the practicability is strong, the safety is high, it has the characteristics of anti-corrosion and wear resistance, strong self-cleaning ability, long service life, stable quality and high quality.
