hot recommended mineral water bottle filling machine machine more buying choices for distribution

hot recommended mineral water bottle filling machine machine more buying choices for distribution
  • hot recommended mineral water bottle filling machine machine more buying choices for distribution
  • hot recommended mineral water bottle filling machine machine more buying choices for distribution
  • hot recommended mineral water bottle filling machine machine more buying choices for distribution
  • hot recommended mineral water bottle filling machine machine more buying choices for distribution
  • hot recommended mineral water bottle filling machine machine more buying choices for distribution
  • hot recommended mineral water bottle filling machine machine more buying choices for distribution
  • hot recommended mineral water bottle filling machine machine more buying choices for distribution

hot recommended mineral water bottle filling machine machine more buying choices for distribution

EcoPura mineral water bottling plant manufacturer is manufactured applying technical method and advanced production equipment. We have established business partnerships with more than 10.000 companies like Honda, China Southern Airlines, etc
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

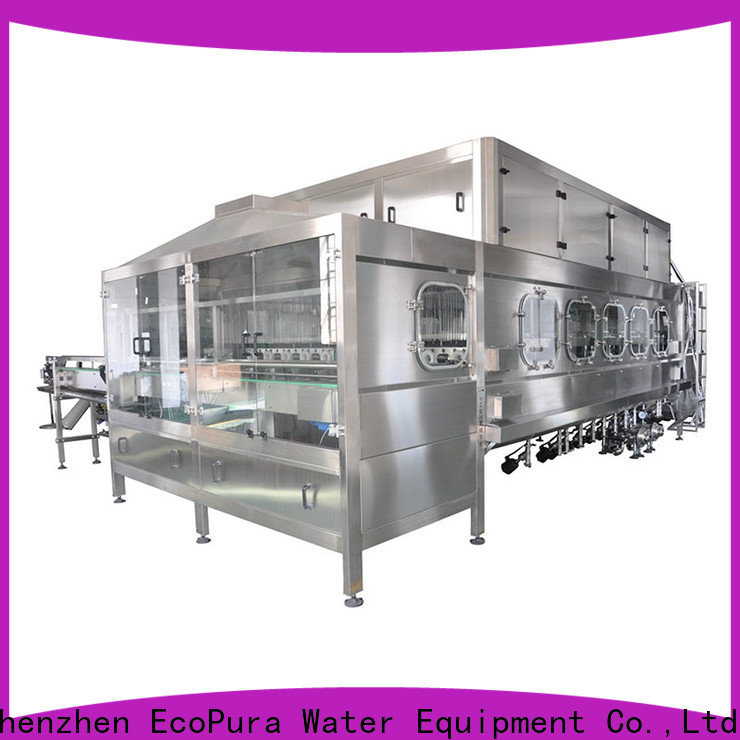

ECOPURA 5gallon bottle washing filling capping machine HSG1200 with capacity 1200bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

hot recommended mineral water bottle filling machine machine more buying choices for distribution-1

hot recommended mineral water bottle filling machine machine more buying choices for distribution-2
hot recommended mineral water bottle filling machine machine more buying choices for distribution-3
hot recommended mineral water bottle filling machine machine more buying choices for distribution-4

hot recommended mineral water bottle filling machine machine more buying choices for distribution-5

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

hot recommended mineral water bottle filling machine machine more buying choices for distribution-6

hot recommended mineral water bottle filling machine machine more buying choices for distribution-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


Owing to our hard-working professional production team, EcoPura mineral water bottling plant manufacturer is of the finest craftsmanship. We apply pad printing in custom colors, and CNC manufacture customized aluminum stencils which are suitable for any flat or semi-curved surface
EcoPura mineral water bottling plant manufacturer is manufactured by our workers with a good understanding of the high quality raw materials. We are certified to SGS, which is one of the authoritative international certifications
The raw materials of EcoPura mineral water bottling plant manufacturer are chosen among several suppliers and only the best one is adopted by our materials department. We are looking for long lasting mutually beneficial relationships with potential and existing customers
The design of EcoPura mineral water bottle filling machine combines aesthetics and functionality. Our products have been exported to many countries, such as the United States, Russia, India, etc
The appearance of EcoPura mineral water bottle filling machine is greatly enhanced by the innovative design. Established in 2002, Gaojie has over 15-year experience in providing rapid prototyping service
The quality of products has been recognized by international authoritative testing institutions. Our standard painting system is PPG automotive urethanes but we can also supply custom paints for your prototype if necessary
