hot recommended filling equipment 5gallon factory for distribution

hot recommended filling equipment 5gallon factory for distribution
  • hot recommended filling equipment 5gallon factory for distribution
  • hot recommended filling equipment 5gallon factory for distribution
  • hot recommended filling equipment 5gallon factory for distribution
  • hot recommended filling equipment 5gallon factory for distribution
  • hot recommended filling equipment 5gallon factory for distribution
  • hot recommended filling equipment 5gallon factory for distribution
  • hot recommended filling equipment 5gallon factory for distribution

hot recommended filling equipment 5gallon factory for distribution

The content on EcoPura filling equipment is arranged reasonably. It is created by our professional designers who are equipped with packaging and printing knowledge and expertise. The product can greatly reduce ink loss
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

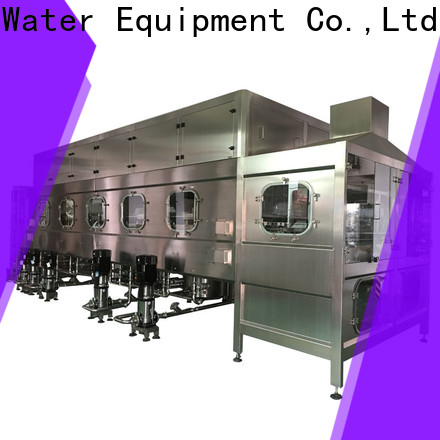

ECOPURA 5gallon bottle washing filling capping machine HSG1500 with capacity 1500bph
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

hot recommended filling equipment 5gallon factory for distribution-1

hot recommended filling equipment 5gallon factory for distribution-2
hot recommended filling equipment 5gallon factory for distribution-3
hot recommended filling equipment 5gallon factory for distribution-4

hot recommended filling equipment 5gallon factory for distribution-5

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing


hot recommended filling equipment 5gallon factory for distribution-6

hot recommended filling equipment 5gallon factory for distribution-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


The design of EcoPura filling equipment is carried out by a team of designers who adopt innovative concepts of its colors, fonts, and shapes. The product is compatible with materials with various shapes
The design of EcoPura mineral water bottling plant manufacturer is market-based. It is carefully designed based on dimensions, weight, and characteristics of the product to be packed. The longevity of the product' service life is its big virtue
EcoPura filling equipment is designed by our designers who keep their design process in-house to create an elegant looking and cost-effective packaging product. The product is praised for its anti-chemical resistance
The production technology of EcoPura filling equipment is constantly updated. Thanks to the adoption of high technology, its packaging capacity is ensured. The longevity of the product' service life is its big virtue
EcoPura filling equipment is produced according to the high packing production standards through the combination of traditional methods and modern advanced packaging and printing technology. The product can process items in a large quantity
The quality control is carefully carried out throughout the entire product production cycle. It is highly automatic and requires little manpower
