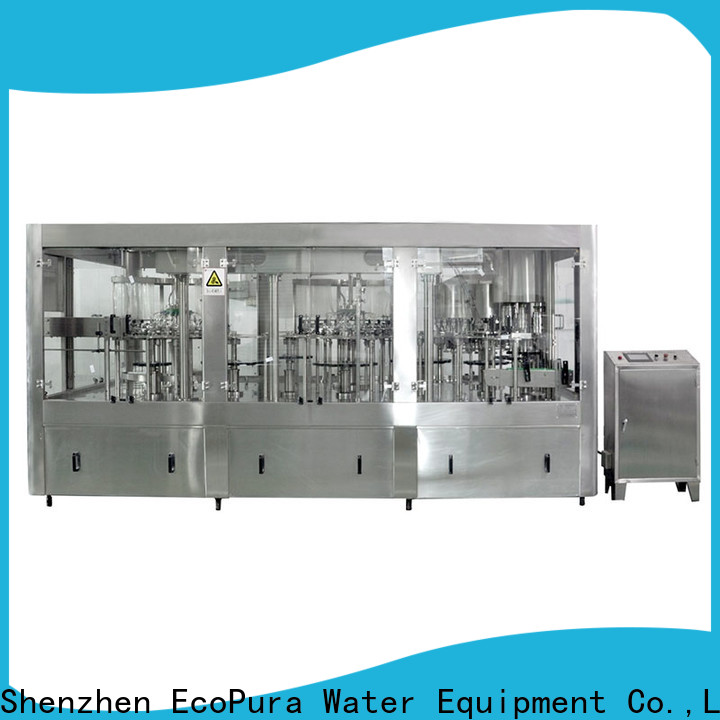

high quality juice filling machine 3in1 international market for distribution

Product Detail

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

high quality juice filling machine 3in1 international market for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

high quality juice filling machine 3in1 international market for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

high quality juice filling machine 3in1 international market for distribution-3

high quality juice filling machine 3in1 international market for distribution-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

high quality juice filling machine 3in1 international market for distribution-5

high quality juice filling machine 3in1 international market for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

i******z

EcoPura juice filling machine price is manufactured using a variety of high technologies. They are mainly sensing technology, control system, detection system, and servo drive technology. The product has extra low internal impedance

b******m

The quality of EcoPura juice filling machine price is guaranteed by the workmanship assessment. It will be evaluated in terms of its electromotive force, capacity, specific energy, and resistance. It has a compact design which allows it to be used even in small space

b******p

EcoPura juice filling machine has been tested. It has achieved a BS 5234-2: 1992 severe duty rating which is conducted by an accredited laboratory. It can be charged at a very fast speed

z******a

EcoPura juice filling machine meets the industry safety standards for electrical devices. It has been tested to prove that its electromagnetic disturbance level, electrostatic discharge, and electric leakage control are within the stipulated limit. Its dimensions including length, width, and thickness are all precise

m******k

The design of EcoPura juice filling machine resorts to advanced technologies. It is created using CAD and CAM which lay a solid foundation for the optimized design. There will be no fire or explosion happened on our product

s******f

The product, meeting with the strict quality standards, has a long service life. The product produces lower heat compared with other products in the market
