high quality juice filling equipment 4in1 more buying choices for upgrade industries

Company Advantages
1. EcoPura juice bottle filling machine is made of materials which are carefully selected and sourced. The raw materials used do not contain any toxic or harmful substances such as mercury, lead, polybrominated biphenyl, and polybrominated diphenyl ethers. The product can ensure a high filtration rate
2. The material of juice filling equipment is carefully inspected and chosen. The product generates little noise during operation
3. With the support of a strong and professional team, this product is tested to be of high quality without nothing more to worry. The product features a high degree of automation

Product Detail

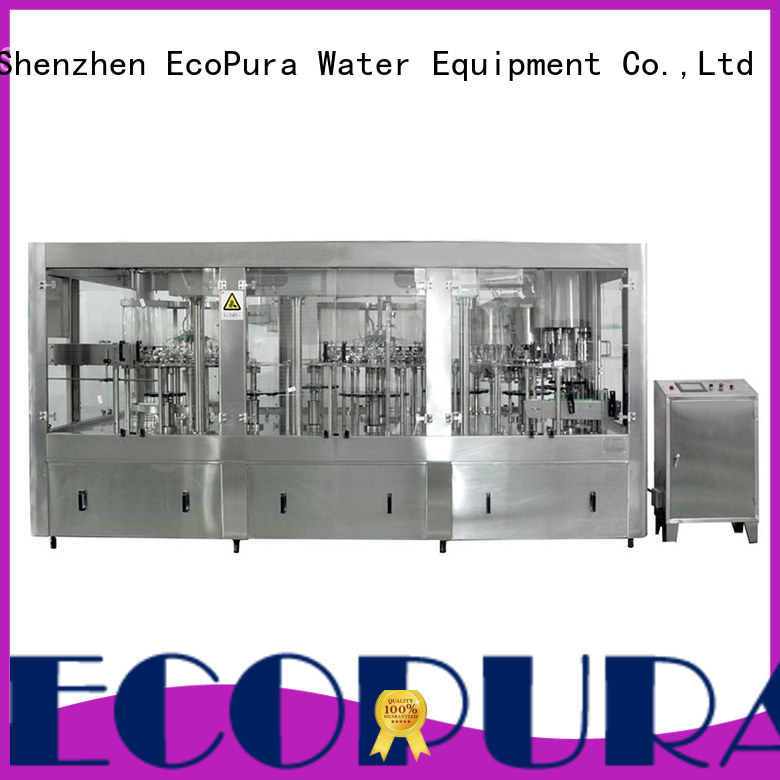

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

high quality juice filling equipment 4in1 more buying choices for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

high quality juice filling equipment 4in1 more buying choices for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

high quality juice filling equipment 4in1 more buying choices for upgrade industries-3

high quality juice filling equipment 4in1 more buying choices for upgrade industries-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

high quality juice filling equipment 4in1 more buying choices for upgrade industries-5

high quality juice filling equipment 4in1 more buying choices for upgrade industries-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has over decades of years successful experience in juice filling equipment marketing and product development.
2. We have a team of professional R&D experts. They have a deep insight into market product purchasing tendency, which makes them better understand customers' needs and offer targeted products.
3. Shenzhen EcoPura Water Equipment Co.,Ltd is committed to juice bottle filling machine in juice filling machine price filed. Inquiry!

m******a

Shenzhen EcoPura Water Equipment Co.,Ltd Constantly upgrade and renew production equipment and production lines, and explore technologies and processes to ensure that the overall quality of juice bottle filling machine produced is more reliable.

d******y

Shenzhen EcoPura Water Equipment Co.,Ltd Standardized production is carried out in strict accordance with national standards, and the products are strictly tested with almost harsh quality control standards and inspection methods to ensure that the produced juice bottle filling machine are qualified products with reliable quality.

c******c

The company has strong strength and strict management. It not only has a standardized production workshop, but also has established a perfect quality management system. From the selection of raw materials to the delivery of finished products, the quality is strictly controlled in every link to ensure the excellent quality of juice filling machine price.

j******c

The juice filling machine price we produce is fine in workmanship, reasonable in design, excellent in performance and stable in quality, and is a trustworthy high-quality product.

q******p

juice filling equipment The design is scientific and reasonable, the materials are exquisite, the workmanship is fine, durable, and the service life is long. It is a product of high quality and extraordinary quality.

y******o

Many customers are satisfied with the high quality of this product. It is made to provide easy additional security for years to come
