high quality juice bottling machine 4in1 more buying choices for distribution

Product Detail

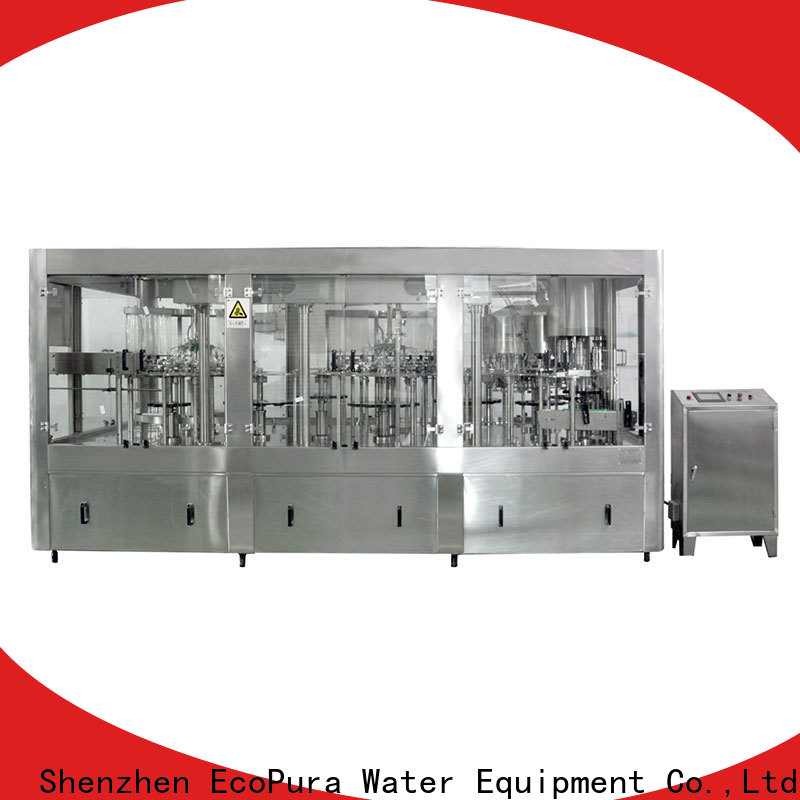

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

high quality juice bottling machine 4in1 more buying choices for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

high quality juice bottling machine 4in1 more buying choices for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

high quality juice bottling machine 4in1 more buying choices for distribution-3

high quality juice bottling machine 4in1 more buying choices for distribution-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

high quality juice bottling machine 4in1 more buying choices for distribution-5

high quality juice bottling machine 4in1 more buying choices for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

w******p

The raw materials of EcoPura juice bottle filling machine go through demanding qualitative selection criteria in terms of nature constancy and the absence of contaminants. It conforms to the standards of EN, ASTM, DIN, BS, JIS, etc

z******g

EcoPura juice bottling machine is made of clay and other inorganic nonmetallic minerals which are guaranteed to be free of lead, cadmium, and other heavy metal elements. The product provides a high-accuracy testing result

m******k

EcoPura juice bottle filling machine has been inspected under a series of quality requirements, such as water absorption, thermostability, whiteness, glaze lustrousness, and deformation. Adopting high-quality imported stainless steel, it has a long service life

n******b

The design of EcoPura juice bottling machine is carried out by the in-house designers who hold qualifications and certifications in porcelain pattern making and creating. Through hardening treatment, it is sturdy enough

r******v

Regarding the appearance treatment, EcoPura juice bottle filling machine meets the domestic quality standards for porcelain. There are no more than two flaws including glaze peels, crack, dark spot, and bubble. Aluminum alloy is applied to the product to prevent distortion

e******i

The product can be used for a long time. Its mechanical components are sturdy enough to wear over time and require little maintenance within its service life. Its key components are made of stainless steel which is durable in use
