high quality injection blow moulding machine servo wholesale for an importer

Product Detail

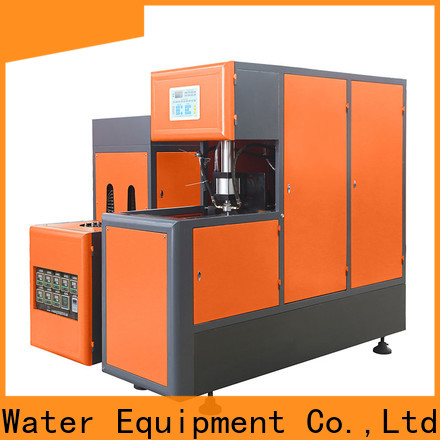

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle

high quality injection blow moulding machine servo wholesale for an importer-1

Product Parameter

Model	EPC-20L
Mold Cavities	1
Speed	100bph
Bottle Size -Max	20L
Bottle Height	＜600 mm
Bottle Neck	＜200 mm
Bottle Body Diameter	＜400 mm
Working Pressure	1.0kg/cm2
Low Pressure Air Consumption	560L/min
Blowing Air Pressure	12-28kg/cm2
High Pressure Air Consumption	650L/min
Installation Power	70kw
Practical Power	15-40kw
Machine Size	L2.4mW0.7mH1.65m
Weight	1300kgs

Product Specification

♦ Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
♦ The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
♦ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
♦ The machine can be operated in the step-by-step mode and the semi- auto mode.
♦ The machine is small with low investment, easy and safe to operate by one person.

k******n

The production of EcoPura blow moulding is strictly in accordance with the requirements of customers. We have the knowledge, know-how, and expertise to deliver the exacting parts you demand

a******u

Every piece of EcoPura injection blow moulding machine is born in a scientific and orderly production process. With cnc machining process, our team of engineers and machinists program the equipment to optimize cutting time, surface finish, and final tolerance to meet your design specifications

r******a

EcoPura blow moulding is manufactured by using superior quality raw material and progressive technology under the vigilance of proficient professionals. With cnc machining process, our team of engineers and machinists program the equipment to optimize cutting time, surface finish, and final tolerance to meet your design specifications

j******l

EcoPura injection blow moulding machine is manufactured with a beautiful design by using innovative technology. Our products have been exported to many countries, such as the United States, Russia, India, etc

s******r

Our EcoPura injection blow moulding machine is fabricated using premium material. Established in 2002, Gaojie has over 15-year experience in providing rapid prototyping service

x******r

blow moulding from Shenzhen EcoPura Water Equipment Co.,Ltd sells well in the international market. Anodizing improves corrosion protection, surface hardness, wear resistance, aesthetic appearance and the adhesion of paints and primers. Gaojie is very professional in giving anodizing treatment to different materials for prototyping process
