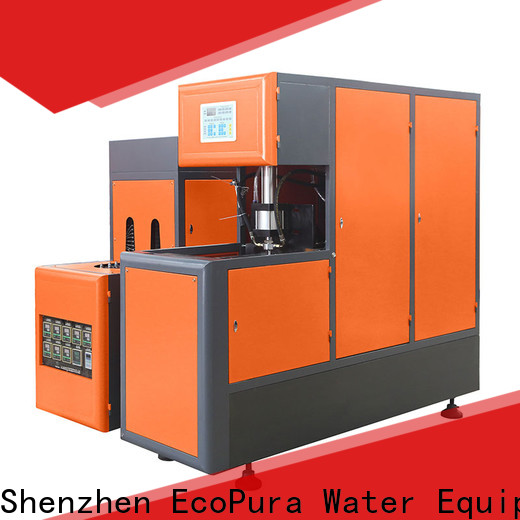

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle

high quality bottle blowing machine 3l6l trade partner for b2b-1

Product Parameter

Model	EPC-20L
Mold Cavities	1
Speed	100bph
Bottle Size -Max	20L
Bottle Height	＜600 mm
Bottle Neck	＜200 mm
Bottle Body Diameter	＜400 mm
Working Pressure	1.0kg/cm2
Low Pressure Air Consumption	560L/min
Blowing Air Pressure	12-28kg/cm2
High Pressure Air Consumption	650L/min
Installation Power	70kw
Practical Power	15-40kw
Machine Size	L2.4mW0.7mH1.65m
Weight	1300kgs

Product Specification

♦ Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
♦ The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
♦ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
♦ The machine can be operated in the step-by-step mode and the semi- auto mode.
♦ The machine is small with low investment, easy and safe to operate by one person.

b******f

Shenzhen EcoPura Water Equipment Co.,Ltd Through strict selection and supervision of raw material supply channels, the source is well controlled, and then bottle blowing machine is produced and processed relying on its own advanced equipment, mature technology and technology, and strict procedures and processes are carried out for each step Control, control the core of production, and finally conduct a detailed inspection of each finished product in accordance with the relevant international quality standard system to ensure that every product produced is a top-quality product with excellent quality .

w******f

We have a professional, dedicated and dedicated management team and a group of experienced production personnel. The team members work hard, insist on adopting advanced design concepts and using unique production technology to manufacture bottle blow molding machine, which makes bottle blow molding machine not only reasonable in structure, but also And the quality is stable.

s******p

We insist on using advanced concepts and exquisite craftsmanship to process bottle blowing machine, so that bottle blowing machine not only has a reasonable structure, but also has excellent performance, both aesthetics and practicality, high quality, and can meet customers' high requirements demand for quality products.

h******t

Shenzhen EcoPura Water Equipment Co.,Ltd There are modern workshops, standardized production workshops, automated production equipment, strict quality inspection system, etc., which can ensure that all bottle blow molding machine produced by our company are of qualified and high quality.

h******t

After years of industry exploration, Shenzhen EcoPura Water Equipment Co.,Ltd has not only accumulated rich production experience, but also mastered advanced production technology, which can realize bottle blow molding machine good and fast production, and all bottle blow molding machine have undergone strict quality inspections and meet national standards Quality inspection standards, quality is trustworthy.

i******o

The product features vibration resistance. By reducing the amplitude and frequency of the vibrational waves, it outwardly disperses the energy caused by vibrations.
